TEN20-2411 footprint, schematic symbol and 3D model by Traco Power

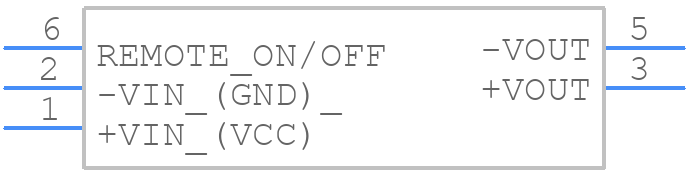

Symbol

click to zoom

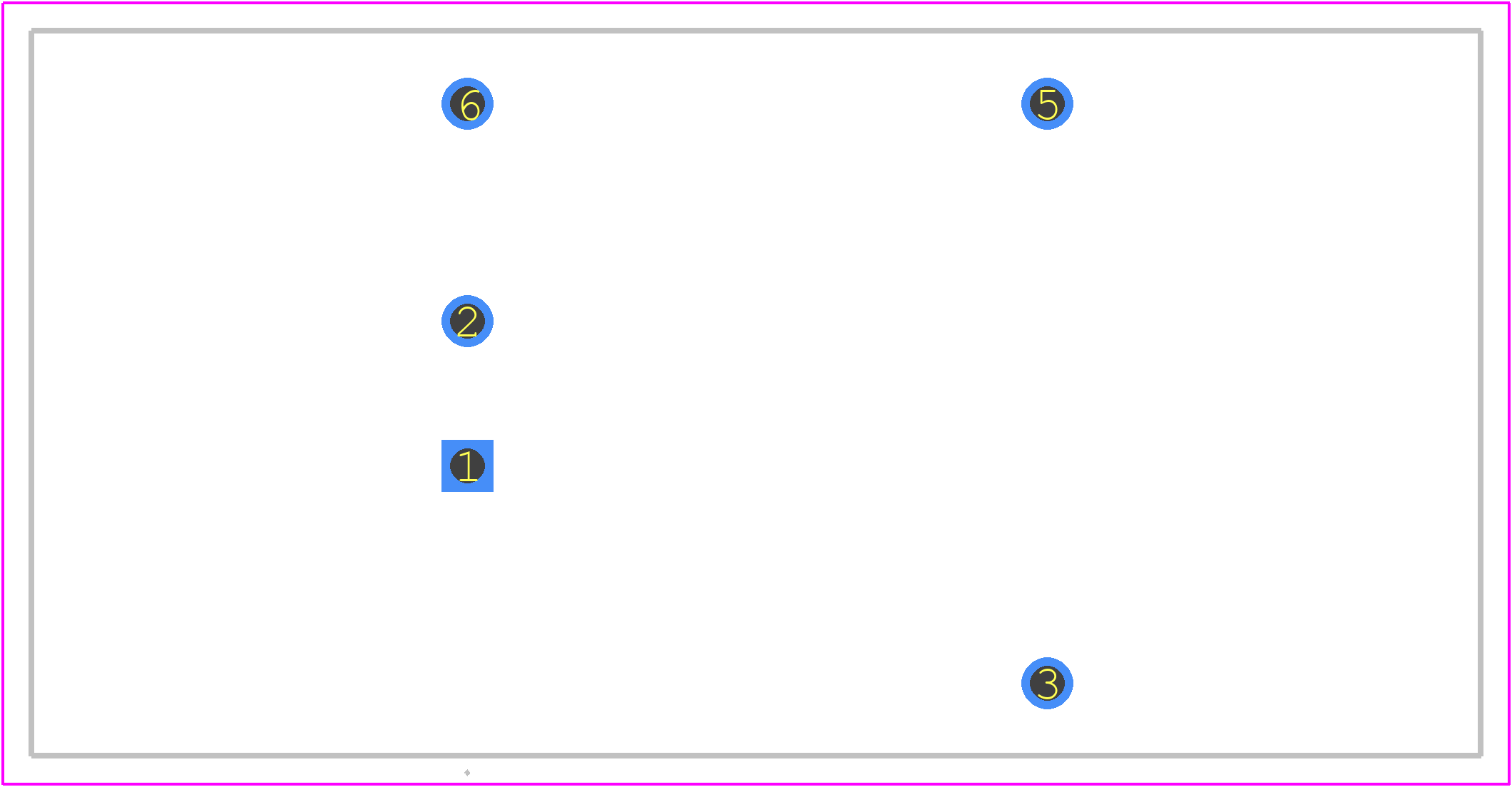

PCB Footprints

TEN20-2411 - Traco Power PCB footprint - Other - Other - TEN20-2411-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TEN20-2411
Part Number TEN20-2411
Manufacturer Traco Power
Pin Count 5
Part Category Power Supply
Package Category Other
Footprint Name Other - TEN20-2411-2
Released Date Apr 14, 2026
Last Modified Date Apr 14, 2026 11:45 AM UTC
Pinout / Pin List Click Here (Member Only)

TEN20-2411 Details

Manufacturer Part Number:
TEN20-2411
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
Package Description:
PACKAGE-6
Country Of Origin:
Taiwan
ECCN Code:
EAR99
Manufacturer:
Traco Power
YTEOL:
3
Additional Feature:
SEATED HGT CALCULATED
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (Main Output):
85%
Input Voltage-Max:
36 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-MDMA-T6
Length:
50.8 mm
Load Regulation-Max:
0.5%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
4 A
Output Voltage-Max:
5.05 V
Output Voltage-Min:
4.95 V
Output Voltage-Nom:
5 V
Package Body Material:
METAL
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
10.7 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
INDUSTRIAL
Terminal Form:
THROUGH-HOLE
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
20 W
Trim/Adjustable Output:
NO
Width:
25.4 mm

TEN20-2411 Frequently Asked Questions (FAQs)

Traco Power recommends using a low-ESR ceramic or film capacitor with a voltage rating of at least 50V and a capacitance value of 10uF to 22uF.
While the TEN20-2411 has a rated operating temperature range of -40°C to +85°C, it's recommended to derate the output power by 2.5% per °C above 60°C to ensure reliable operation.
Traco Power's TEN20-2411 meets various safety certifications, including UL60950-1, EN60950-1, and IEC60950-1. However, it's essential to review the specific certification requirements for your application and ensure the module is used within its specified ratings and guidelines.
The typical efficiency of the TEN20-2411 is around 85-90% depending on the input voltage, output voltage, and load conditions. Refer to the datasheet for detailed efficiency curves.
Yes, you can parallel multiple TEN20-2411 modules to increase the output power, but it's essential to ensure proper synchronization and current sharing between the modules. Traco Power recommends using a dedicated parallel module or consulting with their application engineers for guidance.
