TF31-30S-0.5SH(895) footprint, schematic symbol and 3D model by Hirose

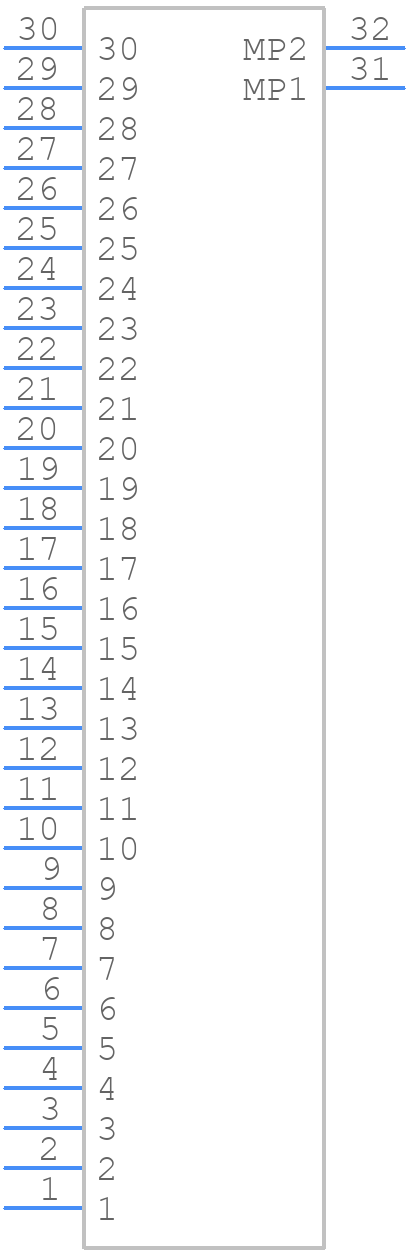

Symbol

click to zoom

PCB Footprints

TF31-30S-0.5SH(895) - Hirose PCB footprint - Other - Other - TF31-30S-0.5SH(895)-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TF31-30S-0.5SH(895)
Part Number TF31-30S-0.5SH(895)
Manufacturer Hirose
Pin Count 32
Part Category Connector
Package Category Other
Footprint Name Other - TF31-30S-0.5SH(895)-2
Released Date Jul 11, 2024
Last Modified Date Jul 11, 2024 8:24 AM UTC
Pinout / Pin List Click Here (Member Only)

TF31-30S-0.5SH(895) Details

Manufacturer Part Number:
TF31-30S-0.5SH(895)
Rohs Code:
Yes
Part Life Cycle Code:
End Of Life
ECCN Code:
EAR99
Factory Lead Time:
16 Weeks
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
2
Connector Type:
FFC/FPC CONNECTOR

TF31-30S-0.5SH(895) Frequently Asked Questions (FAQs)

The recommended torque value is 0.5 N·m to 1.5 N·m, as specified in the Hirose application notes.
Yes, the TF31-30S-0.5SH(895) connector is designed to withstand vibrations up to 10G (10 Hz to 2 kHz) and is suitable for use in high-vibration environments.
The operating temperature range of the TF31-30S-0.5SH(895) connector is -40°C to 105°C, as specified in the datasheet.
Yes, the TF31-30S-0.5SH(895) connector is compatible with lead-free soldering and is RoHS compliant.
The mating cycle life of the TF31-30S-0.5SH(895) connector is 500 cycles, as specified in the datasheet.

Trust Checks

Community Provided

System Verified

Community Approved

TF31-30S-0.5SH(895) Overview

Use the download button to access the TF31-30S-0.5SH(895) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TF31-, or try a keyword search, such as Headers and Edge Type Connectors
