- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TF38-24S-0.5SV(830)
- Part Number TF38-24S-0.5SV(830)
- Manufacturer Hirose
- Pin Count 28
- Part Category Connector
- Package Category Other
- Footprint Name Other - TF38-24S-0.5SV(830)-3
- Released Date Apr 4, 2021
- Last Modified Date May 29, 2025 10:10 AM UTC
- Pinout / Pin List Click Here (Member Only)
TF38-24S-0.5SV(830) Details
-
Manufacturer Part Number:
TF38-24S-0.5SV(830)
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Factory Lead Time:
12 Weeks
-
Manufacturer:
Hirose Electric Co Ltd
-
YTEOL:
8
-
Connector Type:
FFC/FPC CONNECTOR
TF38-24S-0.5SV(830) Frequently Asked Questions (FAQs)
-
The recommended torque is 0.5 N·m to 1.5 N·m, as specified in the Hirose application notes.
-
Yes, the TF38-24S-0.5SV(830) connector is designed to withstand vibrations up to 10 G (10-2000 Hz) and is suitable for use in high-vibration environments.
-
The maximum operating temperature range for the TF38-24S-0.5SV(830) connector is -40°C to 105°C.
-
Yes, the TF38-24S-0.5SV(830) connector is compatible with lead-free soldering processes and can withstand peak reflow temperatures up to 260°C.
-
The TF38-24S-0.5SV(830) connector has a mating cycle life of 500 cycles.
Trust Checks
Expert Contribution
System Verified
Community Approved
TF38-24S-0.5SV(830) Overview

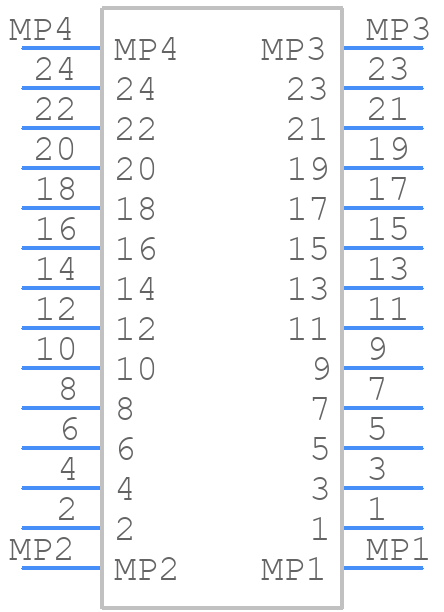

Use the download button to access the TF38-24S-0.5SV(830) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TF38-,
or try a keyword search, such as Headers and Edge Type Connectors
