TFBS4711-TR1 - Vishay

Description: 115.2kbs (SIR) IRDA Transceiver Side View 2.7 V ~ 5.5 V,75 µA,-30°C ~ 85°C

Download TFBS4711-TR1 Model

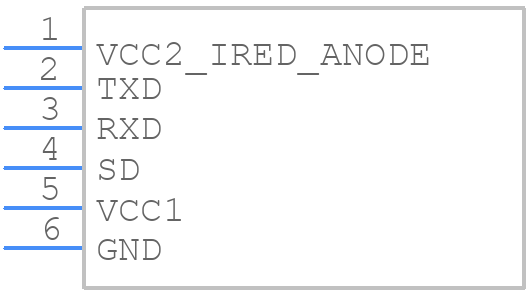

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TFBS4711-TR1 - Vishay PCB footprint - Other - Other - 6.0mm x 3.0mm x 1.9mm_2025
click to zoom
3D Models
TFBS4711-TR1 - Vishay  - 3D model - Other - 6.0mm x 3.0mm x 1.9mm_2025
click to zoom

TFBS4711-TR1 Details

  • Manufacturer Part Number:

    TFBS4711-TR1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-7

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • Consumer IC Type:

    TRANSMITTER/RECEIVER IC

  • JESD-30 Code:

    R-XSMA-N7

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    3.1 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.4 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transmission Media:

    INFRARED

  • Width:

    1.9 mm

TFBS4711-TR1 Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance would be to use a large copper pad under the device, connected to a solid ground plane, and to use thermal vias to dissipate heat. Additionally, keeping the PCB layer stack-up symmetrical and using a thermal relief pattern can help to reduce thermal resistance.
  • To ensure reliable soldering, use a soldering iron with a temperature range of 250°C to 260°C, and a solder with a melting point of 217°C to 220°C. Apply a small amount of solder paste to the pads, and use a reflow oven or a hot air gun to solder the device. Avoid overheating or applying excessive force, which can damage the device.
  • To prevent ESD damage, handle the device in an ESD-protected environment, wear an ESD wrist strap or use an ESD mat, and use ESD-safe packaging materials. Avoid touching the device's pins or leads, and use an anti-static bag or wrap to store the device when not in use.
  • The TFBS4711-TR1 is not hermetically sealed, so it's not recommended for use in high-humidity environments. However, if you must use it in such an environment, ensure the device is properly sealed or coated to prevent moisture ingress, and follow the recommended storage and handling procedures to minimize the risk of moisture-related failures.
  • Store the TFBS4711-TR1 in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -40°C to 30°C, and the relative humidity should be below 60%. Use anti-static packaging materials and avoid stacking devices on top of each other.
