Part Image

TFC-120-01-F-D - SAMTEC

Description: Headers & Wire Housings .050" Tiger Eye Cost-Effective Reliable Terminal Strip

Download TFC-120-01-F-D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TFC-120-01-F-D - SAMTEC - PCB symbol
click to zoom
PCB Footprints

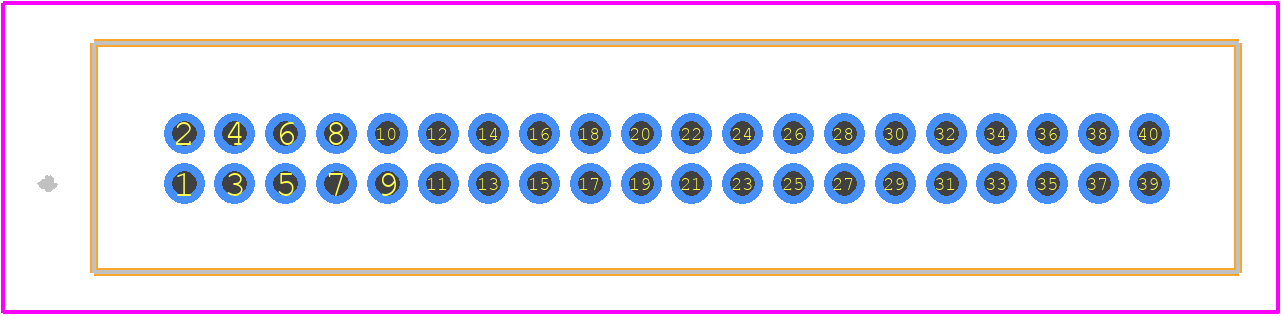

TFC-120-01-F-D - SAMTEC PCB footprint - Other - Other - TFC-120-01-F-D-4
click to zoom
3D Models
TFC-120-01-F-D - SAMTEC - 3D model - Other - TFC-120-01-F-D-4
click to zoom

TFC-120-01-F-D Details

  • Manufacturer Part Number:

    TFC-120-01-F-D

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8.65

  • Additional Feature:

    SHROUDED

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH OVER NICKEL (50)

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    3.1 A

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    40

TFC-120-01-F-D Frequently Asked Questions (FAQs)

  • The recommended mating sequence for TFC-120-01-F-D is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
  • Yes, the TFC-120-01-F-D is designed to withstand high-vibration environments. However, it's recommended to follow Samtec's guidelines for vibration testing and to consult with their application engineers for specific requirements.
  • The maximum operating temperature for TFC-120-01-F-D is 125°C. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures to ensure reliable operation.
  • The TFC-120-01-F-D is designed for use with 1.57mm thick PCBs. However, Samtec offers variations of this connector that can accommodate different PCB thicknesses. Consult with their application engineers to determine the best option for your specific application.
  • The recommended torque for the screw locks on TFC-120-01-F-D is 0.5-1.5 Nm. Over-torquing can damage the connector, so it's essential to follow the recommended torque specification.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TFC-120-01-F-D Overview

Use the download button to access the TFC-120-01-F-D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TFC-1, or try a keyword search, such as Headers and Edge Type Connectors
