A recommended PCB layout for optimal thermal performance would be to use a large copper pad under the device, connected to a solid ground plane, and to use thermal vias to dissipate heat. Additionally, keeping the PCB layer stack-up symmetrical and using a thermal interface material (TIM) can help improve thermal performance.
To ensure reliable soldering, follow the recommended soldering profile, use a solder with a high melting point (e.g., SAC305), and apply a solder flux. Also, ensure the PCB is clean and free of oxidation, and use a soldering iron with a temperature range of 250°C to 260°C.
The maximum allowed voltage derating for the TFDU4300-TT1 is typically 80% of the maximum rated voltage. However, it's recommended to consult with Vishay Intertechnologies or a qualified engineer to determine the specific derating requirements for your application.
While the TFDU4300-TT1 is primarily designed for low-frequency applications, it can be used in high-frequency applications with proper design considerations. However, the device's parasitic inductance and capacitance may affect its performance at high frequencies. Consult with Vishay Intertechnologies or a qualified engineer to determine the feasibility of using the TFDU4300-TT1 in your high-frequency application.
To handle ESD protection for the TFDU4300-TT1, follow proper handling and storage procedures, use ESD-protective packaging and materials, and implement ESD protection circuits in your design, such as TVS diodes or ESD protection arrays.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TFDU4300-TT1 Overview

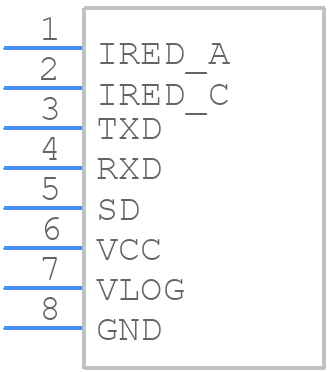

Use the download button to access the TFDU4300-TT1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TFDU4,
or try a keyword search, such as Other Interface ICs
