TFM-104-02-L-D-K footprint, schematic symbol and 3D model by SAMTEC

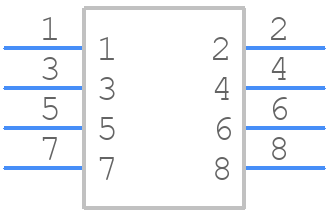

Symbol

click to zoom

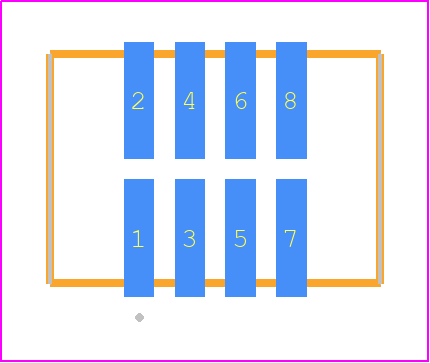

PCB Footprints

TFM-104-02-L-D-K - SAMTEC PCB footprint - Other - Other - TFM-104-02-XXX-D-Y

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TFM-104-02-L-D-K
Part Number TFM-104-02-L-D-K
Manufacturer SAMTEC
Pin Count 8
Part Category Connector
Package Category Other
Footprint Name Other - TFM-104-02-XXX-D-Y
Released Date Jun 12, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TFM-104-02-L-D-K Details

Manufacturer Part Number:
TFM-104-02-L-D-K
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
12
Body Breadth:
0.225 inch
Body Depth:
0.22 inch
Body Length:
0.325 inch
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (15) OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.05 inch
Mating Contact Row Spacing:
0.05 inch
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
3.429 mm
Plating Thickness:
15u inch
Rated Current (Signal):
3.2 A
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
8
UL Flammability Code:
94V-0

TFM-104-02-L-D-K Frequently Asked Questions (FAQs)

The recommended mating sequence for TFM-104-02-L-D-K is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
Yes, the TFM-104-02-L-D-K is designed to withstand high-vibration environments. Samtec's Tiger Eye contact system provides a secure connection and minimizes the risk of contact damage or disconnection due to vibration.
The maximum operating temperature for the TFM-104-02-L-D-K is 125°C (257°F). However, it's recommended to derate the current carrying capacity at higher temperatures to ensure reliable operation.
Yes, the TFM-104-02-L-D-K is designed for automated assembly processes. The connector's design and packaging are optimized for pick-and-place machines and other automated assembly equipment.
The typical lead time for delivery of the TFM-104-02-L-D-K varies depending on the quantity and availability. However, Samtec typically offers a lead time of 2-4 weeks for standard orders. Expedited delivery options may be available for an additional fee.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

TFM-104-02-L-D-K Overview

Use the download button to access the TFM-104-02-L-D-K schematic symbol and PCB footprint.
