Part Image

TFM-110-01-S-D-RA - SAMTEC

Description: Samtec, Tiger Eye TFM, 20 Way, 2 Row, Right Angle PCB Header

Download TFM-110-01-S-D-RA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

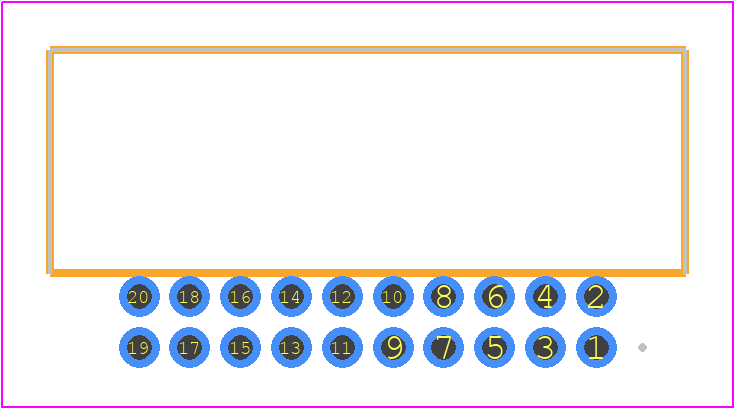

TFM-110-01-S-D-RA - SAMTEC PCB footprint - Other - Other - TFM-110-01-XXX-D-RA
click to zoom
3D Models
TFM-110-01-S-D-RA - SAMTEC  - 3D model - Other - TFM-110-01-XXX-D-RA
click to zoom

TFM-110-01-S-D-RA Details

  • Manufacturer Part Number:

    TFM-110-01-S-D-RA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Malaysia, USA

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Samtec Inc

  • Risk Rank:

    2.23

  • YTEOL:

    8.69

  • Additional Feature:

    ROHS COMPLIANT

  • Body Breadth:

    0.225 inch

  • Body Depth:

    0.29 inch

  • Body Length:

    0.625 inch

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (50)

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.05 inch

  • Mating Contact Row Spacing:

    0.05 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    1.27 mm

  • Plating Thickness:

    30u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Reference Standard:

    UL, CSA

  • Terminal Length:

    0.075 inch

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TFM-110-01-S-D-RA Overview

Use the download button to access the TFM-110-01-S-D-RA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TFM-1, or try a keyword search, such as Headers and Edge Type Connectors
