TFM-110-02-S-S-WT footprint, schematic symbol and 3D model by SAMTEC

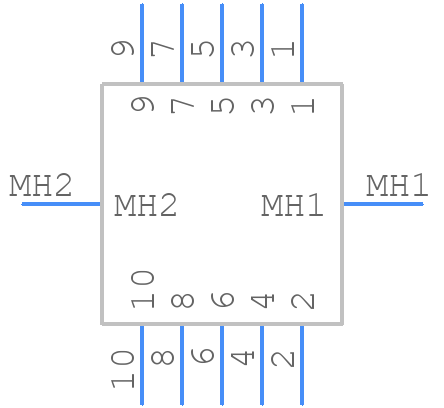

Symbol

click to zoom

PCB Footprints

TFM-110-02-S-S-WT - SAMTEC PCB footprint - Other - Other - TFM-110-02-S-S-WT-1

click to zoom

3D Models

TFM-110-02-S-S-WT - SAMTEC - 3D model - Other - TFM-110-02-S-S-WT-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TFM-110-02-S-S-WT
Part Number TFM-110-02-S-S-WT
Manufacturer SAMTEC
Pin Count 12
Part Category Connector
Package Category Other
Footprint Name Other - TFM-110-02-S-S-WT-1
Released Date Jul 6, 2020
Last Modified Date Mar 16, 2023 7:19 AM UTC
Pinout / Pin List Click Here (Member Only)

TFM-110-02-S-S-WT Details

Manufacturer Part Number:
TFM-110-02-S-S-WT
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
4 Weeks, 1 Day
Manufacturer:
Samtec Inc
YTEOL:
8.75
Additional Feature:
E.L.P., TIGER EYE
Body Breadth:
0.175 inch
Body Depth:
0.22 inch
Body Length:
0.763 inch
Connector Type:
BOARD STACKING CONNECTOR
Contact Finish Mating:
GOLD (30)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.05 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
1
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
STAGGERED
Plating Thickness:
30u inch
Rated Current (Signal):
3.2 A
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
10

TFM-110-02-S-S-WT Frequently Asked Questions (FAQs)

The recommended torque for the screws on the TFM-110-02-S-S-WT connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the TFM-110-02-S-S-WT connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper mounting and screw torque to ensure reliable operation.
The maximum operating temperature for the TFM-110-02-S-S-WT connector is 125°C (257°F) according to the datasheet. However, it's recommended to derate the operating temperature based on the specific application and environmental conditions.
The TFM-110-02-S-S-WT connector has a waterproof rating of IP67, which means it can withstand immersion in water up to 1 meter for 30 minutes. However, it's recommended to follow Samtec's guidelines for sealing and potting to ensure reliable operation in humid or wet environments.
The recommended mating cycle for the TFM-110-02-S-S-WT connector is 500-1000 cycles according to Samtec's application notes. However, this may vary depending on the specific application and environmental conditions.

Trust Checks

Expert Contribution

System Verified

Community Approved

TFM-110-02-S-S-WT Overview

Use the download button to access the TFM-110-02-S-S-WT schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TFM-1, or try a keyword search, such as Headers and Edge Type Connectors
