The recommended mating sequence for the TFM-110-12-STL-D-P connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
Yes, the TFM-110-12-STL-D-P connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with high shock and vibration, such as aerospace, industrial, and automotive.
The maximum operating temperature for the TFM-110-12-STL-D-P connector is 125°C (257°F). However, it's recommended to derate the connector's current-carrying capacity at higher temperatures to ensure reliable operation.
Yes, the TFM-110-12-STL-D-P connector is compatible with lead-free soldering processes. Samtec Inc uses lead-free materials and manufacturing processes to ensure compliance with RoHS and other environmental regulations.
The typical lead time for delivery of the TFM-110-12-STL-D-P connector varies depending on the quantity and availability. However, Samtec Inc typically quotes a lead time of 4-6 weeks for standard orders. Expedited delivery options may be available for an additional fee.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TFM-110-12-STL-D-P Overview

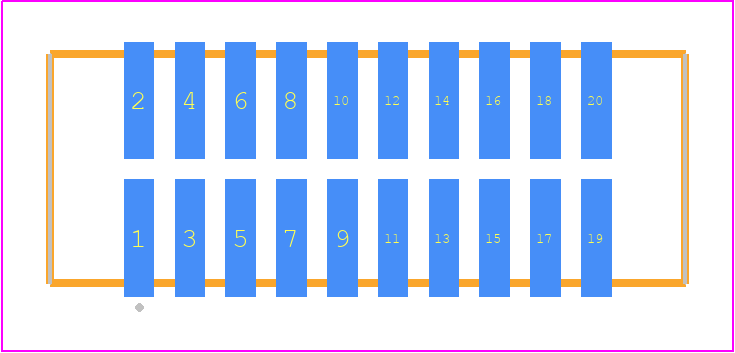

Use the download button to access the TFM-110-12-STL-D-P schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TFM-1,
or try a keyword search, such as Headers and Edge Type Connectors
