TFM-115-03-STL-D footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

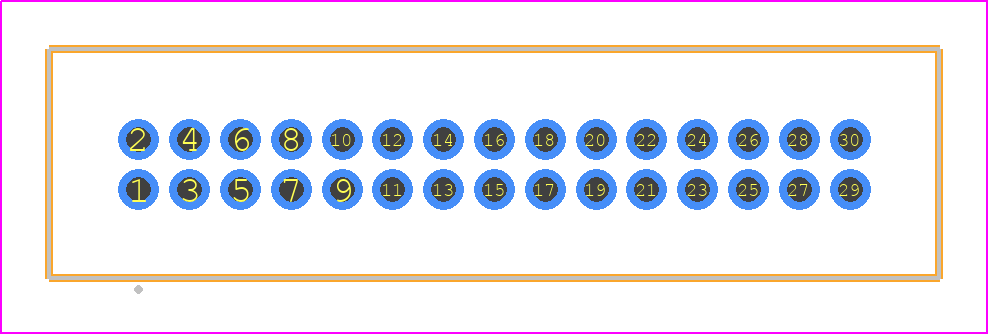

TFM-115-03-STL-D - SAMTEC PCB footprint - Other - Other - TFM-115-XX-YYY-D

click to zoom

3D Models

TFM-115-03-STL-D - SAMTEC - 3D model - Other - TFM-115-XX-YYY-D

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TFM-115-03-STL-D
Part Number TFM-115-03-STL-D
Manufacturer SAMTEC
Pin Count 30
Part Category Connector
Package Category Other
Footprint Name Other - TFM-115-XX-YYY-D
Released Date Jun 12, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TFM-115-03-STL-D Details

Manufacturer Part Number:
TFM-115-03-STL-D
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
9.15
Body Breadth:
0.225 inch
Body Length:
0.875 inch
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (30)
Contact Finish Termination:
Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e0
MIL Conformance:
NO
Mating Contact Pitch:
0.05 inch
Mating Contact Row Spacing:
0.05 inch
Mixed Contacts:
NO
Mounting Option 1:
GUIDE SLOT
Mounting Option 2:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
1.27 mm
Plating Thickness:
30u inch
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
3.2 A
Reference Standard:
UL, CSA
Terminal Pitch:
1.27 mm
Termination Type:
SOLDER
Total Number of Contacts:
30
UL Flammability Code:
94V-0

TFM-115-03-STL-D Frequently Asked Questions (FAQs)

The recommended torque for the screws on the TFM-115-03-STL-D connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the TFM-115-03-STL-D connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which means it can operate in environments with vibrations up to 15 g (147 m/s²) at 10-2000 Hz.
Yes, the TFM-115-03-STL-D connector is compatible with lead-free soldering processes. Samtec recommends using a peak reflow temperature of 260°C (500°F) and a soldering process that meets the IPC J-STD-020D standard.
The maximum operating temperature of the TFM-115-03-STL-D connector is 125°C (257°F). However, Samtec recommends derating the connector's current rating at higher temperatures to ensure reliable operation.
The TFM-115-03-STL-D connector has a moisture sensitivity level (MSL) rating of 1, which means it can withstand normal humidity levels. However, it's not designed for immersion in water or exposure to high-pressure water jets. If you need a connector for a wet environment, consider using a sealed or waterproof connector.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

TFM-115-03-STL-D Overview

Use the download button to access the TFM-115-03-STL-D schematic symbol, PCB footprint, and 3D model.
