The recommended torque for the screws on the TFM-115-32-STL-D-LC connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the TFM-115-32-STL-D-LC connector is designed to withstand high-vibration environments. Samtec's testing shows that it can withstand vibrations up to 20 G's (20 times the force of gravity) in the Z-axis and 10 G's in the X and Y axes.
The maximum operating temperature of the TFM-115-32-STL-D-LC connector is 125°C (257°F) according to Samtec's datasheet.
Yes, the TFM-115-32-STL-D-LC connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in European Union and other regions with similar regulations.
The TFM-115-32-STL-D-LC connector has a moisture sensitivity level (MSL) rating of 1, which means it can withstand normal humidity levels. However, it's not designed for immersion in water or exposure to high-pressure water jets. For applications in humid or wet environments, additional sealing or protection may be required.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TFM-115-32-STL-D-LC Overview

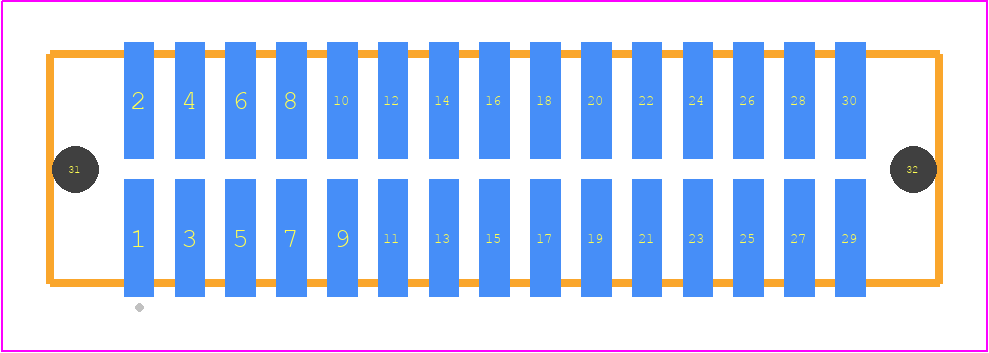

Use the download button to access the TFM-115-32-STL-D-LC schematic symbol and PCB footprint.
