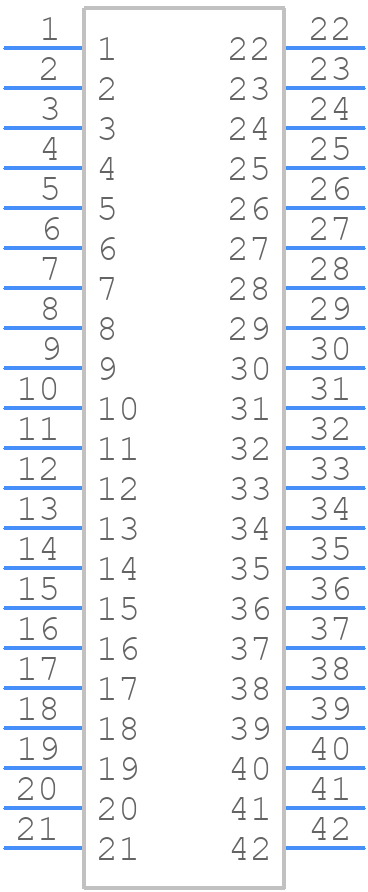

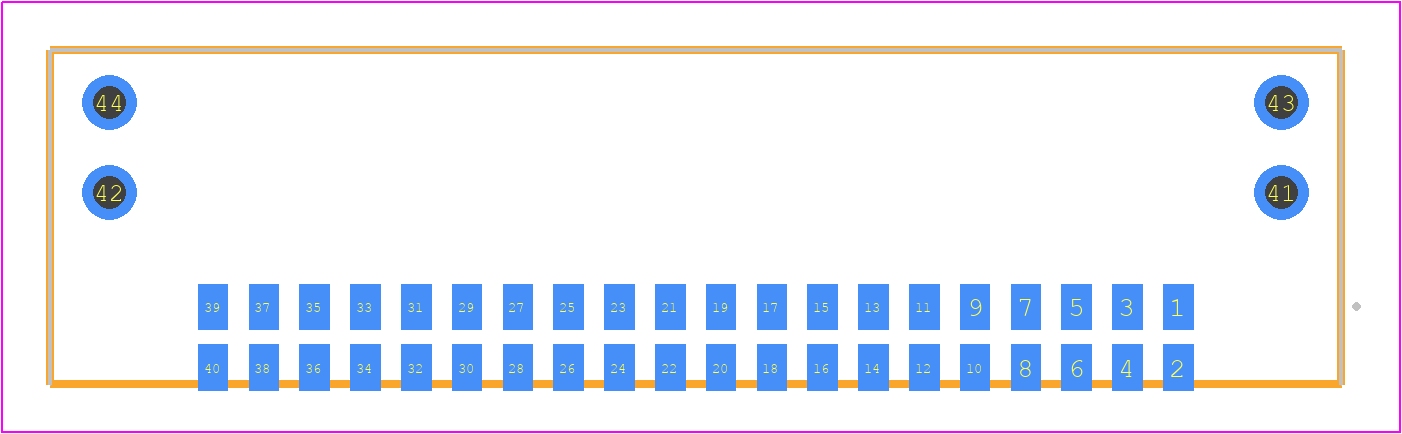

TFM-120-02-F-DH - SAMTEC

TFM-120-02-F-DH Details

• Manufacturer Part Number:

  TFM-120-02-F-DH

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Costa Rica, USA

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Samtec Inc

• YTEOL:

  9

• Board Mounting Option:

  PEG

• Body Breadth:

  0.225 inch

• Body Depth:

  0.334 inch

• Body Length:

  2.271 inch

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Termination:

  Tin (Sn) - with Nickel (Ni) barrier

• Contact Gender:

  MALE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  15 mΩ

• Contact Style:

  SQ PIN-SKT

• Dielectric Withstanding Voltage:

  750VAC V

• Durability:

  2500 Cycles

• Filter Feature:

  NO

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.05 inch

• Mating Contact Row Spacing:

  0.05 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  1.52 mm

• Plating Thickness:

  3u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  3.7 A

• Reference Standard:

  UL

• Terminal Pitch:

  0.05 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  40

• UL Flammability Code:

  94V-0
