The recommended mating sequence for the TFM-130-32-S-D-A connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
Yes, the TFM-130-32-S-D-A connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with high shock and vibration.
The maximum operating temperature for the TFM-130-32-S-D-A connector is 125°C. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures to ensure reliable operation.
The TFM-130-32-S-D-A connector is designed for use with 1.57mm thick PCBs. However, it can be used with PCBs of different thicknesses, but the connector's performance and reliability may be affected. It's recommended to consult with Samtec's application engineers for custom designs.
The typical lead time for the TFM-130-32-S-D-A connector is 6-8 weeks. However, this may vary depending on the quantity, shipping location, and other factors. It's recommended to check with Samtec's customer service or authorized distributors for the most up-to-date lead times.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TFM-130-32-S-D-A Overview

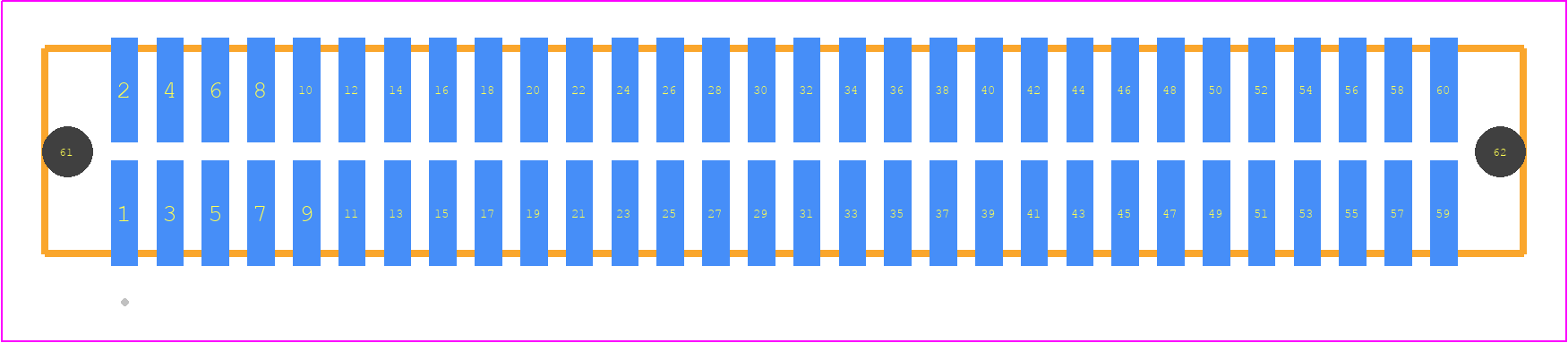

Use the download button to access the TFM-130-32-S-D-A schematic symbol and PCB footprint.
