TFM-145-01-L-D-WT footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

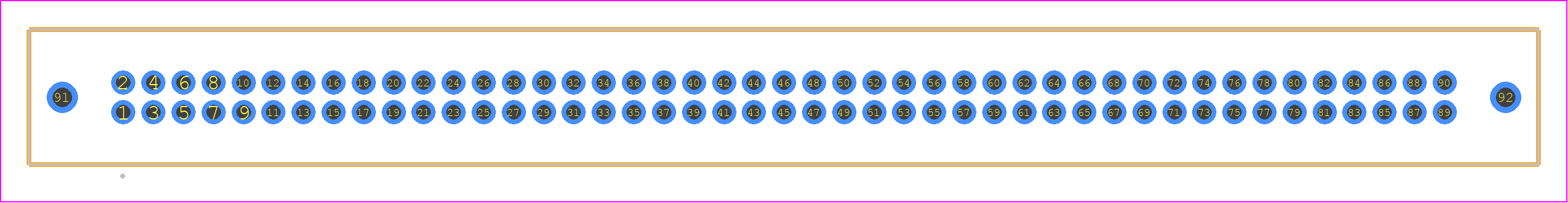

TFM-145-01-L-D-WT - SAMTEC PCB footprint - Other - Other - TFM-145-YY-XXX-D-WT

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TFM-145-01-L-D-WT
Part Number TFM-145-01-L-D-WT
Manufacturer SAMTEC
Pin Count 90
Part Category Connector
Package Category Other
Footprint Name Other - TFM-145-YY-XXX-D-WT
Released Date Jun 12, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TFM-145-01-L-D-WT Details

Manufacturer Part Number:
TFM-145-01-L-D-WT
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
9.15
Body Breadth:
0.225 inch
Body Depth:
0.22 inch
Body Length:
2.513 inch
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (15) OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.05 inch
Mating Contact Row Spacing:
0.05 inch
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
1.27 mm
Plating Thickness:
15u inch
Rated Current (Signal):
3.2 A
Terminal Pitch:
1.27 mm
Termination Type:
SOLDER
Total Number of Contacts:
90
UL Flammability Code:
94V-0

TFM-145-01-L-D-WT Frequently Asked Questions (FAQs)

The recommended torque for the screws on the TFM-145-01-L-D-WT connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the TFM-145-01-L-D-WT connector is designed to withstand high-vibration environments. Samtec's testing has shown that it can withstand vibrations up to 20 G's (196 m/s²) in the Z-axis and 10 G's (98 m/s²) in the X- and Y-axes.
The maximum operating temperature for the TFM-145-01-L-D-WT connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
Yes, the TFM-145-01-L-D-WT connector is compatible with lead-free soldering processes. Samtec's connectors are designed to meet the requirements of the RoHS directive and can withstand the higher temperatures associated with lead-free soldering.
The TFM-145-01-L-D-WT connector has a water-resistant design, but it's not intended for immersion in water or exposure to high-pressure water jets. It's recommended to use additional sealing or conformal coating to ensure reliability in humid or wet environments.
