TFM-150-02-STL-D-WT footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

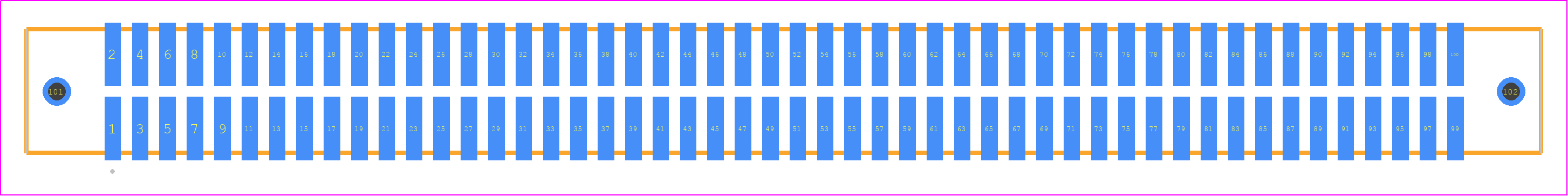

TFM-150-02-STL-D-WT - SAMTEC PCB footprint - Other - Other - TFM-150-02-XXX-D-WT

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TFM-150-02-STL-D-WT
Part Number TFM-150-02-STL-D-WT
Manufacturer SAMTEC
Pin Count 100
Part Category Connector
Package Category Other
Footprint Name Other - TFM-150-02-XXX-D-WT
Released Date Jun 12, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TFM-150-02-STL-D-WT Details

Manufacturer Part Number:
TFM-150-02-STL-D-WT
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
9.4
Body Breadth:
0.225 inch
Body Depth:
0.22 inch
Body Length:
2.763 inch
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (30) OVER NICKEL (50)
Contact Finish Termination:
Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e0
MIL Conformance:
NO
Mating Contact Pitch:
0.05 inch
Mating Contact Row Spacing:
0.05 inch
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
3.429 mm
Plating Thickness:
30u inch
Rated Current (Signal):
3.2 A
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
100
UL Flammability Code:
94V-0

TFM-150-02-STL-D-WT Frequently Asked Questions (FAQs)

The recommended mating sequence for the TFM-150-02-STL-D-WT is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
Yes, the TFM-150-02-STL-D-WT is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with high shock and vibration.
The maximum operating temperature for the TFM-150-02-STL-D-WT is 125°C (257°F). However, it's recommended to derate the current carrying capacity at higher temperatures to ensure reliable operation.
Yes, the TFM-150-02-STL-D-WT is designed to be compatible with automated assembly processes, including pick-and-place machines and robotic assembly systems.
The typical lead time for delivery of the TFM-150-02-STL-D-WT varies depending on the quantity and availability. However, Samtec Inc typically quotes a lead time of 6-8 weeks for standard orders.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

TFM-150-02-STL-D-WT Overview

Use the download button to access the TFM-150-02-STL-D-WT schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TFM-1, or try a keyword search, such as Headers and Edge Type Connectors
