FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
250 mA
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
10 mm
fmax-Min:
165 MHz
TFP410PAPG4 Frequently Asked Questions (FAQs)
A good PCB layout for the TFP410PAPG4 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the power source. Additionally, using a common-mode choke and shielding can help reduce EMI.
To ensure proper biasing, connect the VCC pin to a stable 3.3V or 5V power supply, and decouple it with a 0.1uF capacitor to ground. Also, ensure the input voltage is within the recommended range of 0.5V to 3.5V.
The TFP410PAPG4 can support data rates up to 1.65 Gbps, making it suitable for high-speed applications such as HDMI and DisplayPort.
To manage thermal issues, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the thermal pad on the bottom of the package. Also, keep the device within the recommended operating temperature range of -40°C to 85°C.
The TFP410PAPG4 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and avoid touching the device's pins or exposed internal components.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TFP410PAPG4 Overview

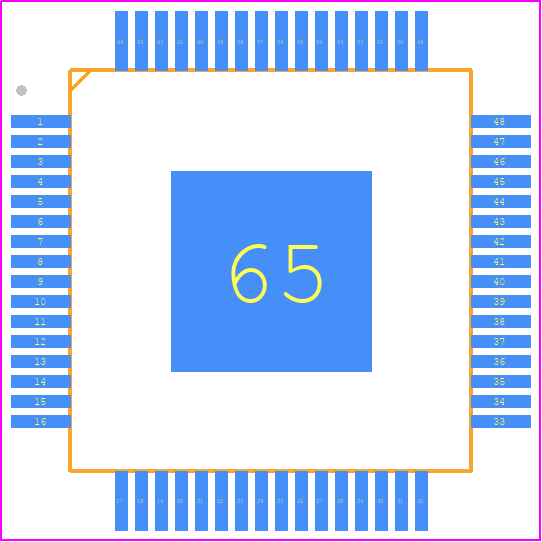

Use the download button to access the TFP410PAPG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TFP41,
or try a keyword search, such as Other Interface ICs
