The recommended PCB layout and land pattern can be found in the manufacturer's application note or by contacting Halo Electronics Inc directly. A good rule of thumb is to follow the IPC-7351 standard for land pattern design and to ensure a solid ground plane under the component.
The TG07-0356NSRL has a thermal resistance of 25°C/W. To ensure proper thermal management, it's recommended to use a heat sink or thermal pad, and to follow the manufacturer's guidelines for thermal design and layout.
The recommended soldering profile for the TG07-0356NSRL is a peak temperature of 240°C for 3-5 seconds, with a ramp-up rate of 1-2°C/s and a ramp-down rate of 1-2°C/s. However, it's recommended to consult the manufacturer's application note or soldering guide for specific guidance.
Yes, the TG07-0356NSRL is a sensitive component and requires proper ESD handling precautions. It's recommended to use an ESD wrist strap, ESD mat, and ESD-safe packaging to prevent damage during handling and storage.
The expected lifespan and reliability of the TG07-0356NSRL depend on various factors such as operating conditions, environmental factors, and quality of the component. According to the manufacturer's datasheet, the component has a typical lifespan of 10 years, but it's recommended to consult the manufacturer's reliability report for more detailed information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TG07-0356NSRL Overview

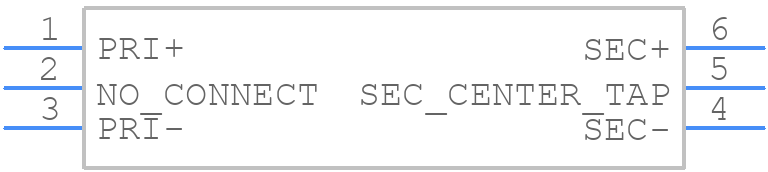

Use the download button to access the TG07-0356NSRL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TG07-,
or try a keyword search, such as Telecom Transformers
