TG110-RP55N5RL - Halo Electronics

Description: Telecom Transformer 10/100 with POE SMT

Download TG110-RP55N5RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

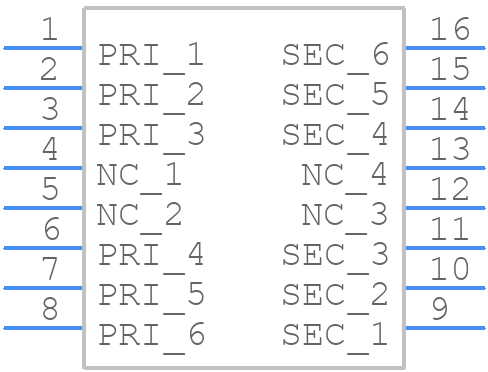

Symbol
TG110-RP55N5RL - Halo Electronics - PCB symbol
click to zoom
PCB Footprints
TG110-RP55N5RL - Halo Electronics PCB footprint - Other - Other - SMD-16
click to zoom
3D Models
TG110-RP55N5RL - Halo Electronics - 3D model - Other - SMD-16
click to zoom

TG110-RP55N5RL Details

  • Manufacturer Part Number:

    TG110-RP55N5RL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Halo Electronics Inc

  • YTEOL:

    3

  • Additional Feature:

    HEIGHT DIMENSION INCLUDES TERMINAL ALSO

  • Application:

    10/100 BASE-TX; ETHERNET

  • Height:

    6.35 mm

  • Insertion Loss:

    1.1 dB

  • Isolation Voltage:

    1500 V

  • Length:

    12.7 mm

  • Load Resistance:

    0.9 Ω

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Operating Frequency-Max:

    100000 kHz

  • Operating Frequency-Min:

    100 kHz

  • Operating Temperature-Max:

    70 °C

  • Primary Inductance:

    350 µH

  • Surface Mount:

    YES

  • Transformer Type:

    DATACOM TRANSFORMER

  • Turns Ratio (Np:Ns):

    1CT: 1CT/1CT: 1CT

  • Width:

    7.11 mm

TG110-RP55N5RL Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the component for airflow and heat dissipation.
  • Use a reflow soldering process with a peak temperature of 240°C and a dwell time of 30-60 seconds. Ensure the PCB is clean and free of oxidation.
  • Use X7R or X5R capacitors with a voltage rating of 50V or higher. A 10uF input capacitor and a 22uF output capacitor are recommended.
  • Use an oscilloscope to monitor the input and output waveforms. Check for voltage drops, noise, and oscillations. Verify the PCB layout and component values.
  • Derate the component by 1.5°C/W above 25°C ambient temperature. Ensure adequate airflow and heat dissipation to prevent thermal runaway.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TG110-RP55N5RL Overview

Use the download button to access the TG110-RP55N5RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TG110, or try a keyword search, such as Pulse/Datacom Transformers
