The recommended PCB layout involves keeping the RF traces as short as possible, using a solid ground plane, and placing the component on a multi-layer board with a thermal via to dissipate heat. A thermal pad on the bottom of the component can also be used to improve heat dissipation.
Proper shielding can be achieved by using a metal can or shield around the module, ensuring the shield is properly grounded, and using a shielded cable for the antenna connection. Additionally, the module should be placed in a shielded compartment or enclosure to prevent RF radiation.
The recommended antenna design is a dipole or monopole antenna with a length of 1/4 wavelength (around 25mm for 2.4GHz). The antenna should be placed at least 10mm away from any metal components or shields, and oriented perpendicular to the PCB to minimize interference.
Secure Wi-Fi connectivity can be implemented using WPA2 encryption with a secure password, and enabling encryption protocols such as AES-CCMP. Additionally, secure authentication methods such as 802.1X can be used to authenticate devices on the network.
The TG111-E201NWLF has a typical power consumption of around 250mA during transmission and 50mA during reception. Power management considerations include using a low-dropout regulator (LDO) to regulate the power supply, and implementing power-saving modes such as sleep mode or low-power mode when the module is not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TG111-E201NWLF Overview

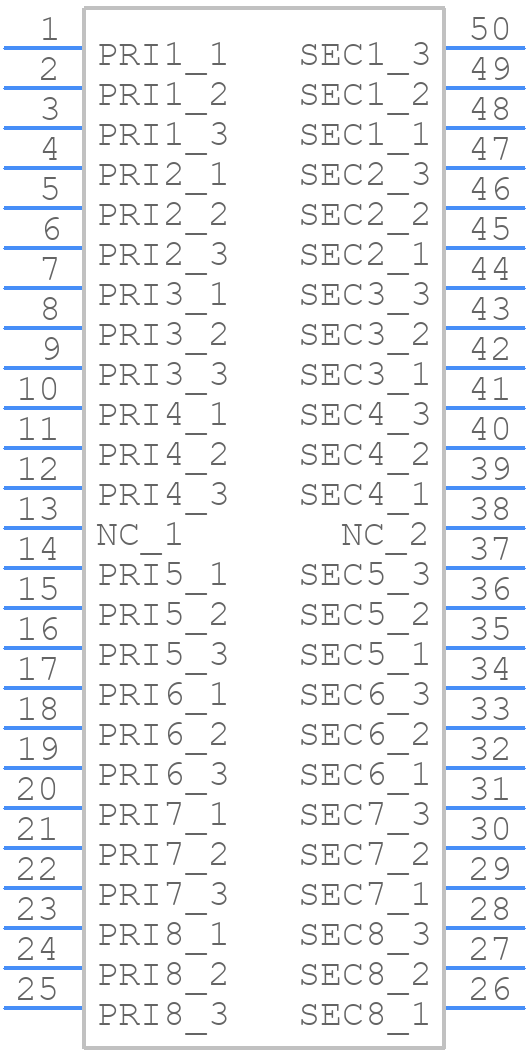

Use the download button to access the TG111-E201NWLF schematic symbol, PCB footprint, and 3D model.
