- Part Number TGA2524-SM
- Manufacturer Qorvo
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - RF5110_1
- Released Date Dec 3, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TGA2524-SM Details
-
Manufacturer Part Number:
TGA2524-SM
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
3 X 3 MM, 0.85 MM HEIGHT, HALOGEN FREE AND ROHS COMPLIANT, QFN-16
-
ECCN Code:
EAR99
-
Manufacturer:
Qorvo
-
YTEOL:
7.37
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Gain:
23 dB
-
Input Power-Max (CW):
19 dBm
TGA2524-SM Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-1234. It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and to prevent thermal shutdown.
-
Qorvo offers a free online tool, the Qorvo GaN Design Hub, which provides a biasing and matching network design wizard. This tool helps optimize the design for specific frequency bands, output power, and impedance matching.
-
Qorvo provides a detailed assembly and soldering guide in their application note AN-1235. It's crucial to follow these guidelines to prevent damage to the device during assembly and to ensure reliable operation.
-
Qorvo offers a troubleshooting guide in their application note AN-1236, which provides a step-by-step approach to identifying and resolving common issues. Additionally, Qorvo's technical support team is available to provide further assistance.
-
Yes, the TGA2524-SM is a sensitive device and requires proper ESD protection and handling. Qorvo recommends following standard ESD precautions, such as using an ESD wrist strap, ESD-safe work surfaces, and antistatic packaging.
Trust Checks
Community Provided
System Verified
Community Approved
TGA2524-SM Overview

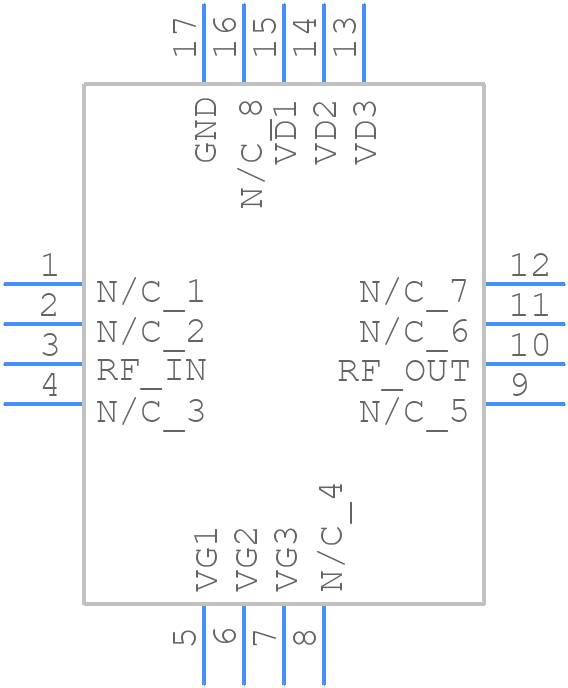

Use the download button to access the TGA2524-SM schematic symbol, PCB footprint, and 3D model.
