TGA2597-SM - Qorvo

Description: RF Amplifier 2-6GHz Gain >24dB 2W GaN PAE >31%

Download TGA2597-SM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

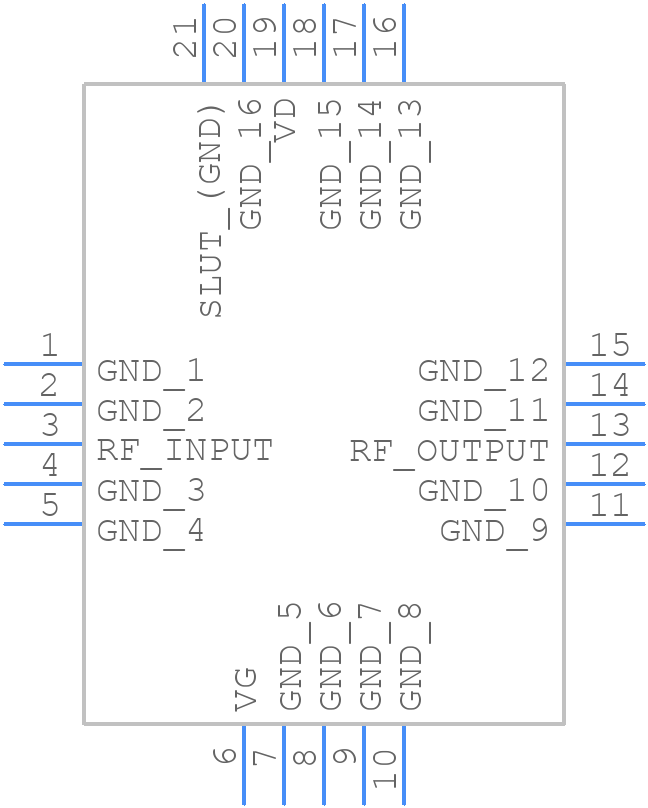

TGA2597-SM - Qorvo - PCB symbol
click to zoom
PCB Footprints
TGA2597-SM - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - TGA2597
click to zoom
3D Models
TGA2597-SM - Qorvo - 3D model - Quad Flat No-Lead - TGA2597
click to zoom

TGA2597-SM Details

  • Manufacturer Part Number:

    TGA2597-SM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    Qorvo

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    24 dB

  • Input Power-Max (CW):

    24 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    2000 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Surface Mount:

    YES

  • Technology:

    GAN

  • VSWR-Max:

    3

TGA2597-SM Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and connecting it to a heat sink or a metal plate.
  • Use a resistive divider network to set the bias voltage, and ensure the voltage supply is well-regulated. A 2.5V to 3.5V bias voltage range is recommended for optimal linearity and gain.
  • Use a conjugate match at the input and output ports to achieve optimal performance. A series inductor and shunt capacitor at the input, and a series capacitor and shunt inductor at the output are recommended.
  • Use a low-noise bias voltage supply, minimize the input and output matching network losses, and ensure good thermal management to minimize thermal noise.
  • The recommended operating temperature range is -40°C to 85°C. Ensure good thermal management to maintain a junction temperature below 125°C for optimal reliability and performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TGA2597-SM Overview

Use the download button to access the TGA2597-SM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TGA25, or try a keyword search, such as RF/Microwave Amplifiers
