Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-1234, which includes guidelines for thermal vias, heat sinks, and PCB material selection to ensure optimal performance and reliability.
Qorvo offers a free online tool, the Qorvo GaN Design Hub, which provides a simulation environment to optimize biasing and matching networks for specific applications. Additionally, Qorvo's application engineers can provide custom design support upon request.
The TGA2830-SMTR7 has undergone rigorous qualification tests, including JEDEC standards for temperature, humidity, and vibration, as well as Qorvo's internal reliability tests. The device is also qualified to AEC-Q102 standards for automotive applications.
Qorvo provides guidelines for EMC and EMI compliance in their application note AN-1235, which includes recommendations for shielding, grounding, and layout techniques to minimize electromagnetic radiation and susceptibility.
Qorvo recommends storing the TGA2830-SMTR7 in a dry, cool place, away from direct sunlight and moisture. The device should be handled with anti-static precautions, such as wrist straps and anti-static bags, to prevent electrostatic discharge (ESD) damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TGA2830-SMTR7 Overview

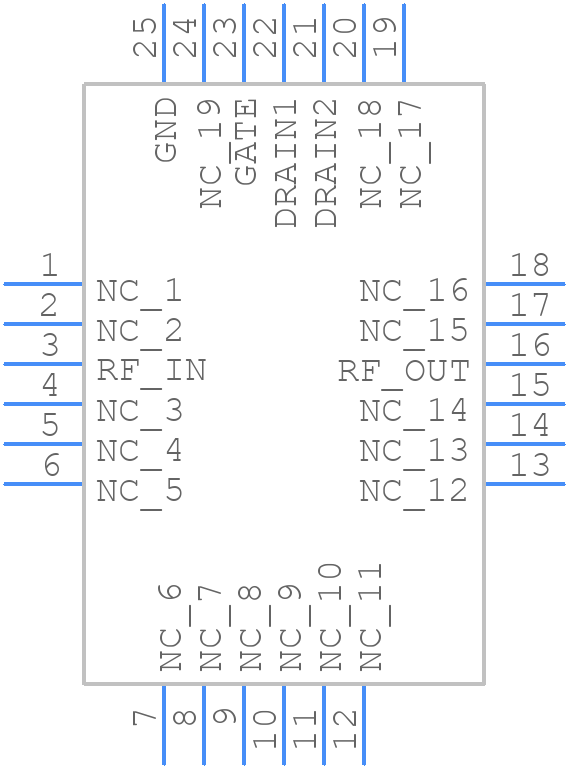

Use the download button to access the TGA2830-SMTR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TGA28,
or try a keyword search, such as Other Telecom ICs
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
