4 X 4 MM, ANTIMONY, HALOGEN, PFOS, SVHC, TBBP-A FREE AND ROHS COMPLIANT PACKAGE-14
ECCN Code:
EAR99
Manufacturer:
Qorvo
Additional Feature:
I/P POWER-MAX (PEAK)=46.989DBM
Adjustability:
FIXED
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
Input Power-Max (CW):
40 dBm
Operating Frequency-Max:
12000 MHz
Operating Frequency-Min:
8000 MHz
RF/Microwave Device Type:
LIMITER
VSWR-Max:
1.07
TGL2209-SM Frequently Asked Questions (FAQs)
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize the length of the RF traces. A via-stitched ground plane is also recommended to reduce electromagnetic radiation.
The optimal bias point for maximum efficiency is typically around 3.5V to 4.5V for Vd and 1.2V to 1.8V for Vg. However, the optimal bias point may vary depending on the specific application and operating conditions. It is recommended to perform load-pull characterization to determine the optimal bias point.
The maximum operating temperature of the TGL2209-SM is 150°C. However, the device is typically derated to 125°C for most applications to ensure reliable operation.
To ensure stability, it is recommended to use a low-ESR capacitor (e.g. 100nF) in parallel with a high-ESR capacitor (e.g. 10uF) at the output of the device. Additionally, a series resistor (e.g. 10Ω) can be used to dampen oscillations.
It is recommended to use a TVS (Transient Voltage Suppressor) diode with a standoff voltage of 3.3V to 5V to protect the device from ESD events. The TVS diode should be placed as close as possible to the device.
Trust Checks
No trust score is available for this model.
Trust Score Unavailable
Sponsored
TGL2209-SM Overview

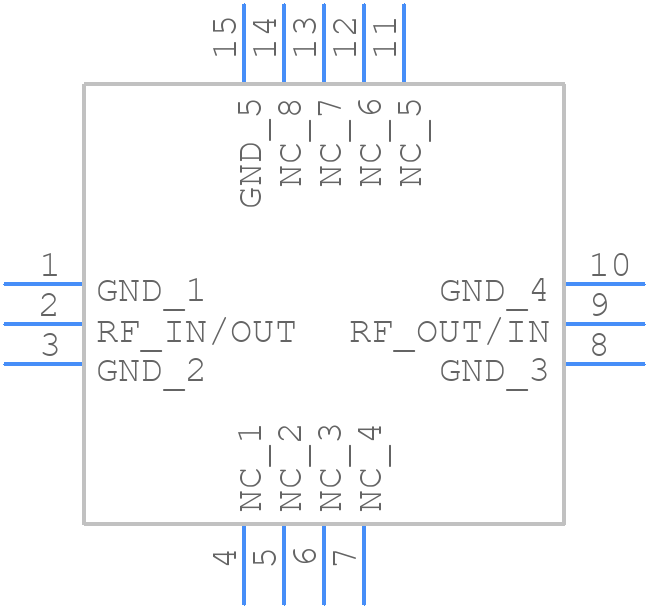

Use the download button to access the TGL2209-SM 3D model. You can still request or build the schematic symbol and PCB footprint by using the respective build or request forms on this page.
To find more CAD model downloads similar to this part, try a partial part number search, like TGL22,
or try a keyword search, such as RF/Microwave Limiters
