The recommended PCB layout involves placing the component on a 4-layer board with a solid ground plane, and using thermal vias to dissipate heat. A heat sink or thermal pad is also recommended to ensure optimal thermal management.
To ensure ESD protection, handle the module by the edges, use an ESD wrist strap or mat, and avoid touching the pins or components. Also, ensure that the PCB design includes ESD protection diodes and follow proper PCB assembly and handling procedures.
The recommended power sequencing is to power up the VCC pin first, followed by the VDD pin, and then the other voltage pins. Power down in the reverse order to prevent damage to the module.
To troubleshoot Wi-Fi connectivity issues, check the module's power supply, ensure the antenna is properly connected, and verify the Wi-Fi configuration and settings. Also, check for any nearby sources of interference and ensure the module is properly shielded.
The module's operating temperature range is -40°C to +85°C. Operating outside this range may affect the module's reliability and performance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TGM-H280V8LF Overview

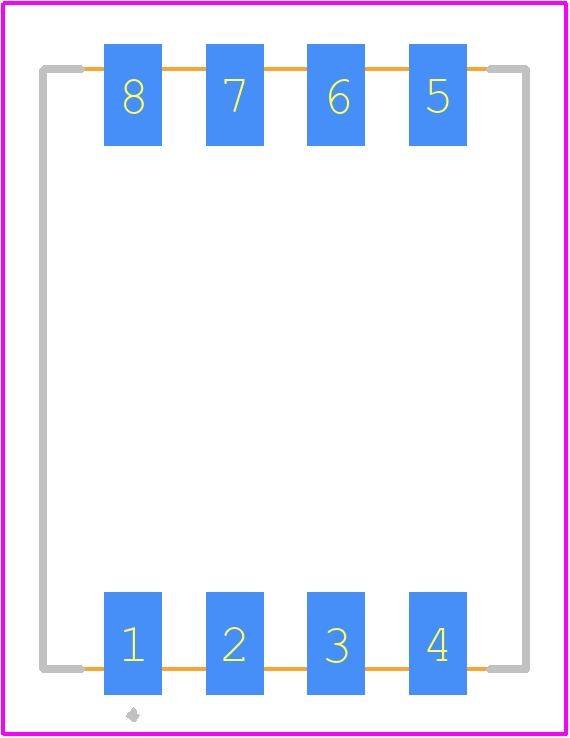

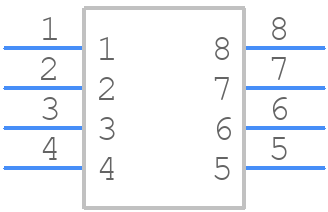

Use the download button to access the TGM-H280V8LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TGM-H,
or try a keyword search, such as Pulse/Datacom Transformers
