The recommended PCB layout involves placing the component on a 4-layer board with a solid ground plane, and using thermal vias to dissipate heat. A thermal pad on the bottom of the component should be connected to a large copper area on the PCB to facilitate heat dissipation.
To ensure ESD protection, handle the component in an ESD-controlled environment, use ESD-protective packaging, and follow proper grounding procedures during assembly. Additionally, consider adding external ESD protection devices if the component will be exposed to high-voltage transients.
The recommended soldering conditions involve using a soldering iron with a temperature range of 250°C to 260°C, and a soldering time of 3-5 seconds. A solder with a melting point of 217°C to 220°C is recommended.
To troubleshoot issues, start by verifying the component's pinout and connections, then check the power supply voltage and current. Use an oscilloscope to analyze the signal waveform and frequency, and consult the datasheet for specific troubleshooting guidelines.
Yes, the component should be stored in a dry, cool place away from direct sunlight and moisture. Avoid bending or flexing the component, and handle it by the body or pins to prevent damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TGM-H281NFLF Overview

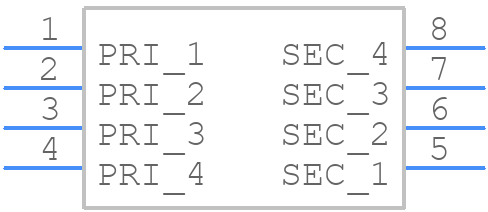

Use the download button to access the TGM-H281NFLF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TGM-H,
or try a keyword search, such as SMPS Transformers
