TGMR-350V6LF - Halo Electronics

Description: Pulse Transformers ISO MOD SMD GullWing 3kVrms 0.9Ohm 6pin

Download TGMR-350V6LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

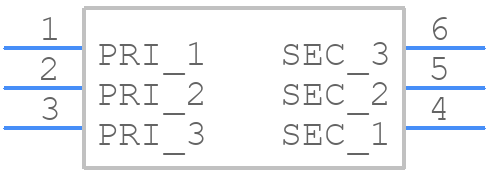

TGMR-350V6LF - Halo Electronics - PCB symbol
click to zoom
PCB Footprints

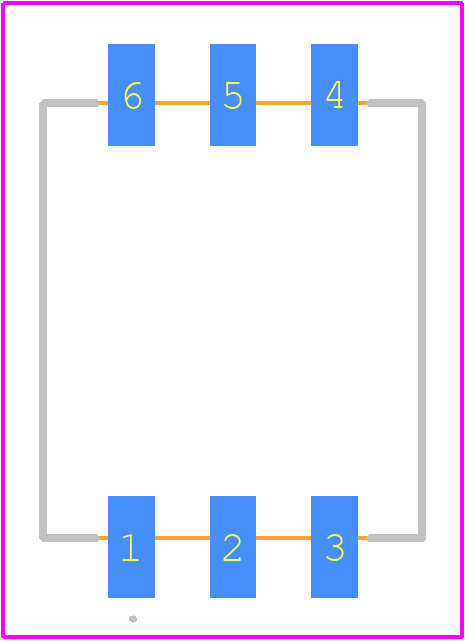

TGMR-350V6LF - Halo Electronics PCB footprint - Other - Other - 9.45mm x 10.87mm x 10.3mm
click to zoom
3D Models
TGMR-350V6LF - Halo Electronics - 3D model - Other - 9.45mm x 10.87mm x 10.3mm
click to zoom

TGMR-350V6LF Details

  • Manufacturer Part Number:

    TGMR-350V6LF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS AND REACH COMPLIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Halo Electronics Inc

  • YTEOL:

    7.49

  • Additional Feature:

    HEIGHT DIMENSION INCLUDES TERMINAL ALSO

  • Application:

    GENERAL PURPOSE

  • Approvals:

    UL

  • ET Product-Min:

    22 V-us

  • Height:

    10.03 mm

  • Isolation Voltage:

    3000 V

  • Length:

    10.87 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Primary Inductance:

    800 µH

  • Surface Mount:

    YES

  • Transformer Type:

    PULSE TRANSFORMER

  • Turns Ratio (Np:Ns):

    1CT:1CT

  • Width:

    9.45 mm

TGMR-350V6LF Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern for the TGMR-350V6LF can be found in the Halo Electronics Inc application note AN-001, which provides guidelines for optimal performance and thermal management.
  • The TGMR-350V6LF is rated for operation up to 125°C and 95% relative humidity. However, it's recommended to derate the component's performance by 10% for every 10°C above 85°C to ensure reliable operation.
  • The recommended soldering profile for the TGMR-350V6LF is a peak temperature of 240°C for 3-5 seconds, with a ramp-up rate of 1-2°C/s and a ramp-down rate of 1-2°C/s. Refer to the Halo Electronics Inc soldering guide for more information.
  • Yes, the TGMR-350V6LF is an ESD-sensitive device and requires handling and storage in accordance with the ANSI/ESD S20.20 standard. It's recommended to use ESD-protective packaging and handling equipment to prevent damage.
  • The typical lead time for the TGMR-350V6LF is 12-14 weeks, and the minimum order quantity is 1,000 pieces. However, these may vary depending on the region and distributor. It's recommended to check with authorized distributors for the most up-to-date information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TGMR-350V6LF Overview

Use the download button to access the TGMR-350V6LF schematic symbol, PCB footprint, and 3D model.
