The recommended PCB layout and land pattern can be found in the manufacturer's application note or by contacting Halo Electronics Inc directly. A good rule of thumb is to follow the IPC-7351 standard for land pattern design.
To ensure reliability, follow the recommended soldering profile, use a solder with a high melting point, and avoid excessive thermal cycling. Additionally, consider using a conformal coating to protect the component from environmental factors.
The TGSP-P028EFD20LF has a maximum junction temperature of 150°C. Ensure good airflow, use a heat sink if necessary, and avoid blocking the airflow around the component. Follow the manufacturer's thermal management guidelines for optimal performance.
Yes, handle the component by the body, avoid touching the leads, and store it in a dry, ESD-protected environment. Follow the manufacturer's guidelines for handling and storage to prevent damage.
Use a systematic approach to troubleshoot issues, checking for proper power supply, signal integrity, and thermal management. Common failure modes include overheating, electrical overstress, and solder joint fatigue. Consult the manufacturer's application note or contact their support team for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TGSP-P028EFD20LF Overview

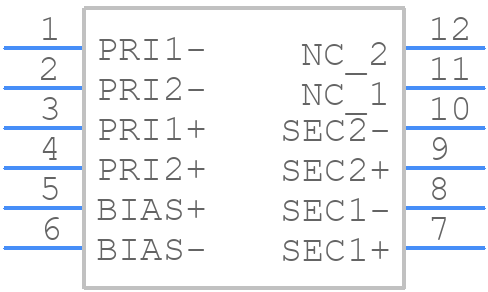

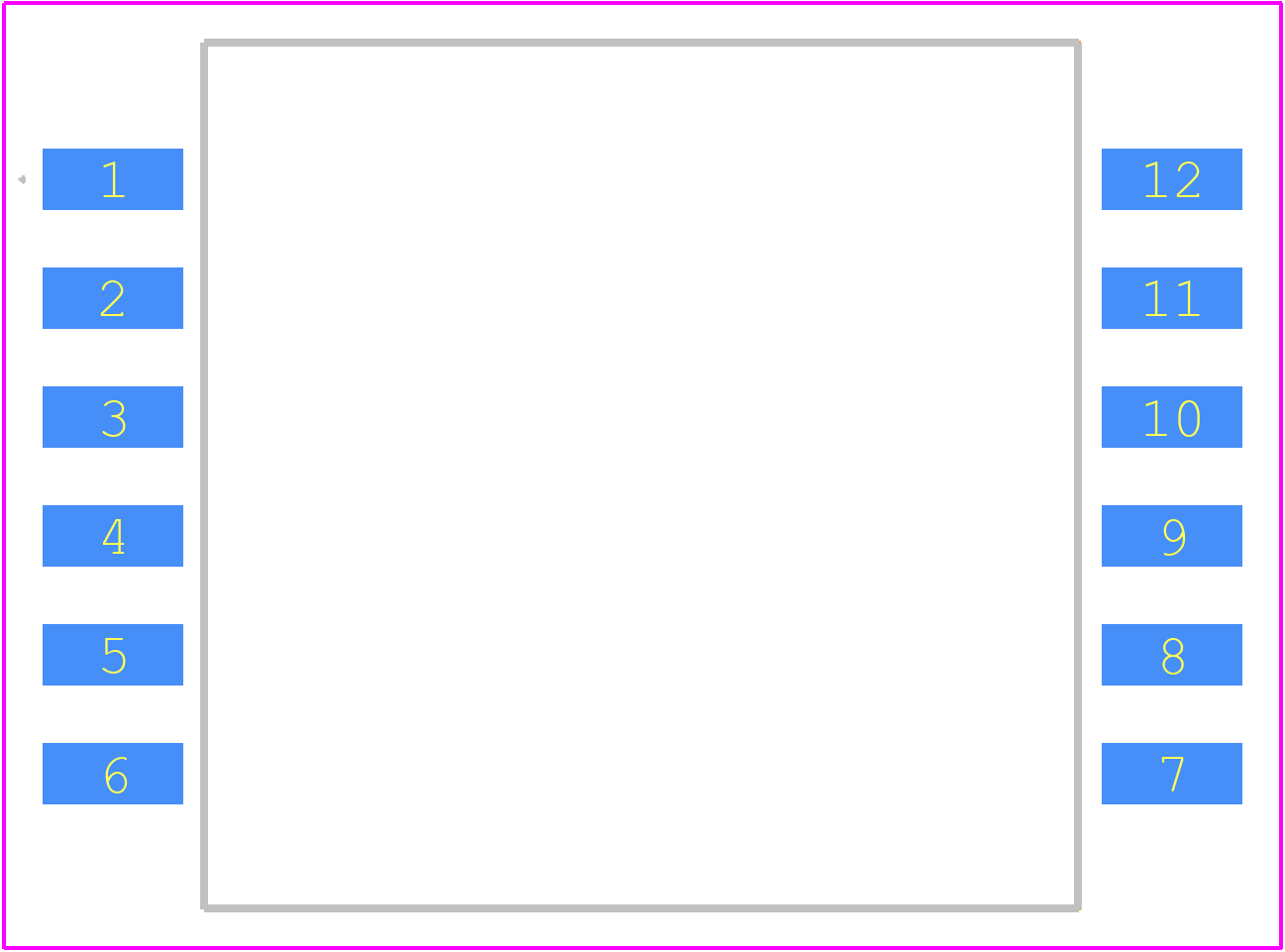

Use the download button to access the TGSP-P028EFD20LF schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TGSP-,
or try a keyword search, such as Power/Mains Transformers
