TH8056KDC-AAA-014-RE - Melexis

Description: CAN Interface IC Single Wire CAN Transceiver (GMW3089 V2.x) in SOIC14 -4

Download TH8056KDC-AAA-014-RE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

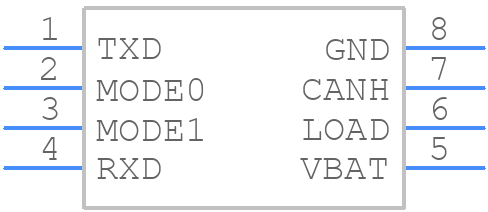

TH8056KDC-AAA-014-RE - Melexis - PCB symbol
click to zoom
PCB Footprints
TH8056KDC-AAA-014-RE - Melexis PCB footprint - Small Outline Packages - Small Outline Packages - SO8
click to zoom
3D Models
TH8056KDC-AAA-014-RE - Melexis - 3D model - Small Outline Packages - SO8
click to zoom

TH8056KDC-AAA-014-RE Details

  • Manufacturer Part Number:

    TH8056KDC-AAA-014-RE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SOIC-14

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Melexis Microelectronic Integrated Systems

  • YTEOL:

    6.37

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Seated Height-Max:

    1.72 mm

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

TH8056KDC-AAA-014-RE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a dedicated thermal layer and a thermal via array under the device is recommended for optimal thermal performance.
  • Ensure proper thermal coupling between the device and the target, minimize thermal gradients, and calibrate the device according to the datasheet.
  • The maximum allowable voltage on the VDD pin is 3.6V, exceeding this may cause permanent damage to the device.
  • Yes, the TH8056KDC-AAA-014-RE is designed to withstand high-vibration environments, but ensure proper mounting and thermal coupling to maintain accuracy.
  • The device's digital output is a 1-wire interface, use a microcontroller or dedicated IC to decode the output and ensure proper signal conditioning.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TH8056KDC-AAA-014-RE Overview

Use the download button to access the TH8056KDC-AAA-014-RE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TH805, or try a keyword search, such as Network Interfaces
