A good PCB layout for the THAT1606Q16-U involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and loops to reduce noise and electromagnetic interference (EMI).
To ensure proper biasing, follow the recommended voltage supply and current requirements outlined in the datasheet. Additionally, ensure that the input and output impedances are properly matched to prevent signal reflections and distortion.
The THAT1606Q16-U has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device near its maximum power rating for extended periods.
To troubleshoot issues with the THAT1606Q16-U, start by checking the power supply and biasing, then verify the input and output impedances are properly matched. Use an oscilloscope to visualize the signal and identify any distortion or noise sources.
Yes, the THAT1606Q16-U is susceptible to electromagnetic interference (EMI) and radio-frequency interference (RFI). Use shielding, filtering, and grounding techniques to minimize the impact of EMI/RFI on the device's performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THAT1606Q16-U Overview

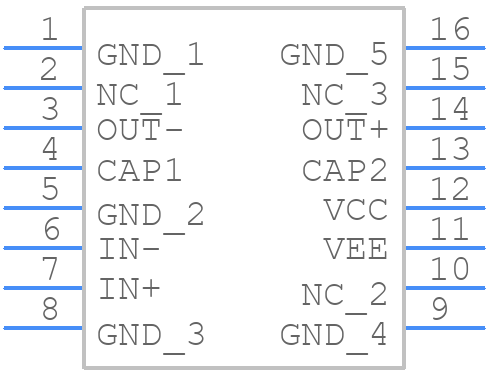

Use the download button to access the THAT1606Q16-U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THAT1,
or try a keyword search, such as Line Driver or Receivers
