Part Image

THBT20011D - STMicroelectronics

Description: Telecom Transient Arrestor THBT20011D, 200V, SO 8-Pin

Download THBT20011D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

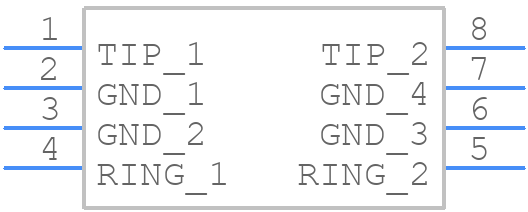

THBT20011D - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
THBT20011D - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - THBT20011D
click to zoom
3D Models
THBT20011D - STMicroelectronics - 3D model - Small Outline Packages - THBT20011D
click to zoom

THBT20011D Details

  • Manufacturer Part Number:

    THBT20011D

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Telecom IC Type:

    GAS DISCHARGE TUBE SUPPRESSOR

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

THBT20011D Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet, and to ensure good thermal conduction to the PCB and heat sink.
  • STMicroelectronics recommends a soldering profile with a peak temperature of 260°C, a dwell time above 217°C of 60-90 seconds, and a cooling rate of 4°C/s to prevent thermal shock.
  • To protect the device from ESD, it is recommended to handle the device in an ESD-protected environment, use ESD-protective packaging, and ensure that the device is properly grounded during handling and assembly.
  • STMicroelectronics recommends storing the device in its original packaging, away from direct sunlight and moisture, and handling the device by the body or leads to prevent damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

THBT20011D Overview

Use the download button to access the THBT20011D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THBT2, or try a keyword search, such as Telecom Protection Circuits

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
