THCV217 - THine

Description: THCV217

Download THCV217 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

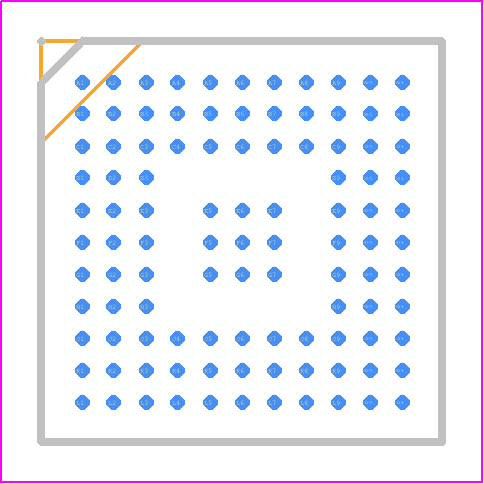

THCV217 - THine PCB footprint - BGA - BGA - TFBGA 10x10 105L
click to zoom
3D Models
THCV217 - THine  - 3D model - BGA - TFBGA 10x10 105L
click to zoom

THCV217 Details

  • Manufacturer Part Number:

    THCV217

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    10 X 10 MM, TFBGA-105

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    THine Electronics Inc

  • Additional Feature:

    ALSO REQUIRED SUPPLY VOLTAGE 3 TO 3.6V

  • Differential Output:

    YES

  • Driver Number of Bits:

    2

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-PBGA-B105

  • Length:

    10 mm

  • Number of Functions:

    2

  • Number of Terminals:

    105

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    1.98 V

  • Supply Voltage-Min:

    1.62 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    10 mm

THCV217 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital signal traces separate and avoid crossing them over each other.
  • Use a low-ESR capacitor (e.g., 0.1uF) between VCC and GND, and a 10uF capacitor between AVCC and AGND. Ensure the power supply is stable and has low ripple.
  • The THCV217 supports clock frequencies up to 100 MHz, but the actual frequency limit may vary depending on the specific application and PCB layout.
  • The THCV217's analog output voltage range is 0.5V to 2.5V. Ensure the receiving circuitry can handle this range, or use an external amplifier or ADC with a compatible input range.
  • The recommended operating temperature range for THCV217 is -40°C to 85°C. Operating outside this range may affect the device's performance and reliability.
