- Part Number THCV231
- Manufacturer THine
- Pin Count 33
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 32-pin QFN
- Released Date Jan 13, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
THCV231 Details
-
Manufacturer Part Number:
THCV231
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Contact Manufacturer
-
Package Description:
QFN-32
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
THine Electronics Inc
-
Differential Output:
YES
-
Driver Number of Bits:
1
-
Input Characteristics:
STANDARD
-
Interface IC Type:
LINE DRIVER
THCV231 Frequently Asked Questions (FAQs)
-
THine Electronics provides a recommended PCB layout guide for THCV231, which includes guidelines for component placement, routing, and grounding. It's essential to follow this guide to ensure optimal performance, low noise, and minimal EMI.
-
The THCV231 is a highly configurable device, and the configuration for different video formats is done through the I2C interface. THine Electronics provides a software development kit (SDK) that includes a configuration tool and example code to help engineers configure the device for various video formats, such as HDMI, DisplayPort, and VGA.
-
The maximum cable length supported by THCV231 depends on the video format and resolution. Generally, the device supports cable lengths up to 30 meters for HDMI and DisplayPort, and up to 100 meters for VGA. However, the actual cable length may vary depending on the specific application and environment.
-
THine Electronics provides a range of tools and resources to help engineers troubleshoot issues with THCV231, including a debugging guide, signal integrity analysis tools, and video quality analysis software. Additionally, THine Electronics' technical support team is available to provide assistance and guidance.
-
Yes, THCV231 is compatible with other THine Electronics devices, including the THCV301. In fact, THine Electronics offers a range of devices that can be used together to create a complete video transmission system. The company provides guidance on how to integrate its devices to achieve optimal performance and compatibility.
Trust Checks
Community Provided
System Verified
Community Approved
THCV231 Overview

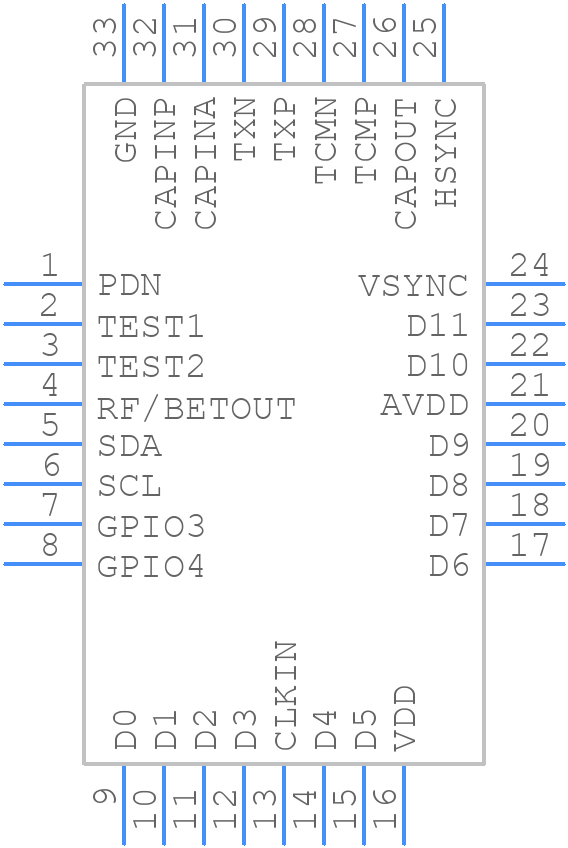

Use the download button to access the THCV231 schematic symbol, PCB footprint, and 3D model.
