- Part Number THCV241A
- Manufacturer THine
- Pin Count 41
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - THCV241A
- Released Date Jan 18, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
THCV241A Details
-
Manufacturer Part Number:
THCV241A
-
Part Life Cycle Code:
Contact Manufacturer
-
Package Description:
QFN-40
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
THine Electronics Inc
-
Differential Output:
YES
-
Driver Number of Bits:
1
-
Input Characteristics:
STANDARD
-
Interface IC Type:
LINE DRIVER
-
JESD-30 Code:
S-XQCC-N40
THCV241A Frequently Asked Questions (FAQs)
-
THine Electronics provides a recommended PCB layout guide for THCV241A, which includes guidelines for component placement, routing, and grounding. It's essential to follow this guide to ensure optimal performance, low noise, and minimal EMI.
-
The THCV241A is a highly configurable device, and the configuration for different video formats is done through the I2C interface. THine Electronics provides a software development kit (SDK) that includes APIs and documentation for configuring the device for various video formats, such as HDMI, DisplayPort, and VGA.
-
The maximum cable length supported by THCV241A depends on the video format and resolution. For HDMI, the maximum cable length is up to 30 meters at 4K resolution and up to 10 meters at 8K resolution. For DisplayPort, the maximum cable length is up to 15 meters at 4K resolution and up to 5 meters at 8K resolution.
-
THine Electronics provides a troubleshooting guide for THCV241A, which includes steps for identifying and resolving common issues, such as signal integrity problems, video artifacts, and clock jitter. Additionally, the company offers technical support and debugging tools to help engineers troubleshoot and resolve issues quickly.
-
Yes, THCV241A is designed to operate in a wide temperature range, making it suitable for automotive and industrial applications. The device operates from -40°C to 85°C, and THine Electronics provides additional support for extended temperature ranges upon request.
Trust Checks
Community Provided
System Verified
Community Approved
THCV241A Overview

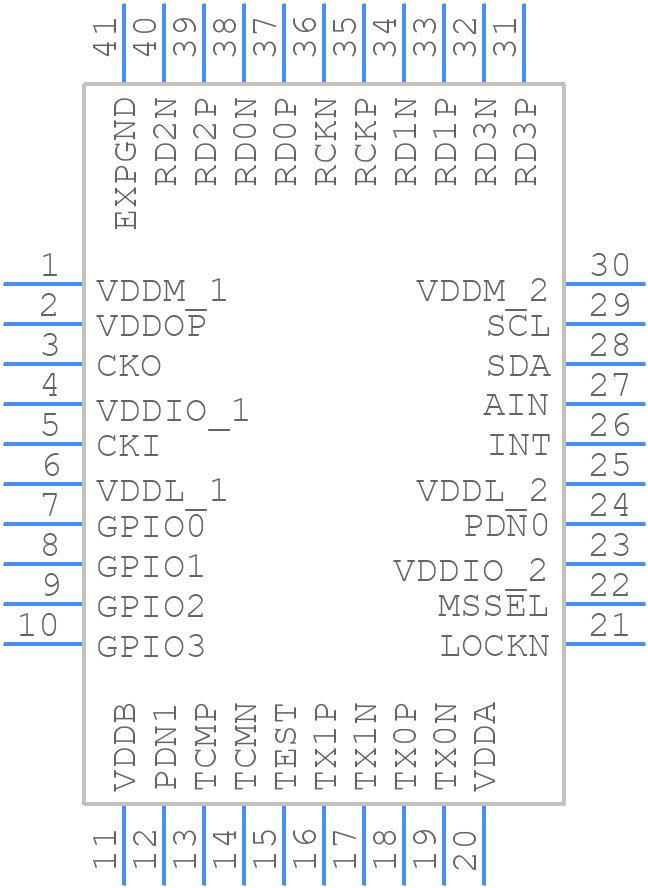

Use the download button to access the THCV241A schematic symbol, PCB footprint, and 3D model.
