THGBM5G6A2JBAIR - Toshiba

Description: eMMC module

Download THGBM5G6A2JBAIR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

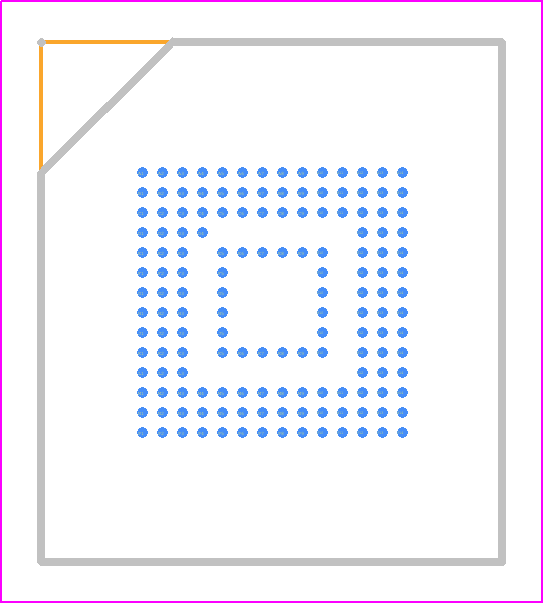

THGBM5G6A2JBAIR - Toshiba PCB footprint - BGA - BGA - P-VFBGA153
click to zoom
3D Models
THGBM5G6A2JBAIR - Toshiba  - 3D model - BGA - P-VFBGA153
click to zoom

THGBM5G6A2JBAIR Details

  • Manufacturer Part Number:

    THGBM5G6A2JBAIR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    VFBGA-153

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • JESD-30 Code:

    R-PBGA-B153

  • Length:

    13 mm

  • Number of Terminals:

    153

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    11.5 mm

  • uPs/uCs/Peripheral ICs Type:

    eMMC

THGBM5G6A2JBAIR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a dedicated thermal plane and vias connecting to the thermal pad is recommended for optimal thermal performance.
  • Ensure proper thermal management, follow the recommended PCB layout, and consider using a thermal interface material (TIM) to minimize thermal resistance.
  • Operating at the maximum junction temperature may reduce the device's lifespan and affect its overall reliability. It's recommended to operate within the recommended temperature range for optimal performance and longevity.
  • While the THGBM5G6A2JBAIR is a high-performance device, it may not meet the specific requirements for high-reliability or aerospace applications. Consult with Toshiba or a qualified representative to determine suitability for such applications.
  • Follow standard ESD protection procedures, such as using ESD-safe materials, grounding straps, and ionizers to minimize the risk of electrostatic discharge damage.
