- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for THP-700+
- Part Number THP-700+
- Manufacturer Mini-Circuits
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - THP-700+-1
- Released Date Jul 5, 2023
- Last Modified Date Jul 5, 2023 2:51 AM UTC
- Pinout / Pin List Click Here (Member Only)
THP-700+ Details
-
Manufacturer Part Number:
THP-700+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
6.7
-
Average Input Power:
0.5 W
-
Center or Cutoff Frequency (fo/fc):
2350 MHz
-
Filter Type:
HIGH PASS FILTER
-
Height:
2.54 mm
-
Input Impedance:
50 OHM
THP-700+ Frequently Asked Questions (FAQs)
-
Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a via-stitched ground plane around the amplifier. The input and output traces should be kept short and 50-ohm matched. A decoupling capacitor (e.g., 100nF) should be placed close to the amplifier's power pins.
-
To achieve the best noise figure performance, ensure that the input is properly matched to 50 ohms, and the amplifier is operated within its recommended operating conditions (e.g., Vcc = 12V, Icc = 120mA). Additionally, use a high-quality, low-noise power supply and minimize the noise floor of the system.
-
The THP-700+ can handle input powers up to +10 dBm without damage. However, for optimal performance and to prevent compression, it's recommended to keep the input power below +5 dBm.
-
While the THP-700+ is designed for 50-ohm systems, it can be used in non-50 ohm systems with some performance degradation. However, impedance matching networks may be required to achieve optimal performance. Consult with Mini-Circuits' application engineers for guidance.
-
The THP-700+ is specified to operate from -40°C to +85°C. However, the amplifier's performance may degrade at extreme temperatures. Consult with Mini-Circuits' application engineers for guidance on operating the amplifier outside of this range.
Trust Checks
Community Provided
System Verified
Community Approved
THP-700+ Overview

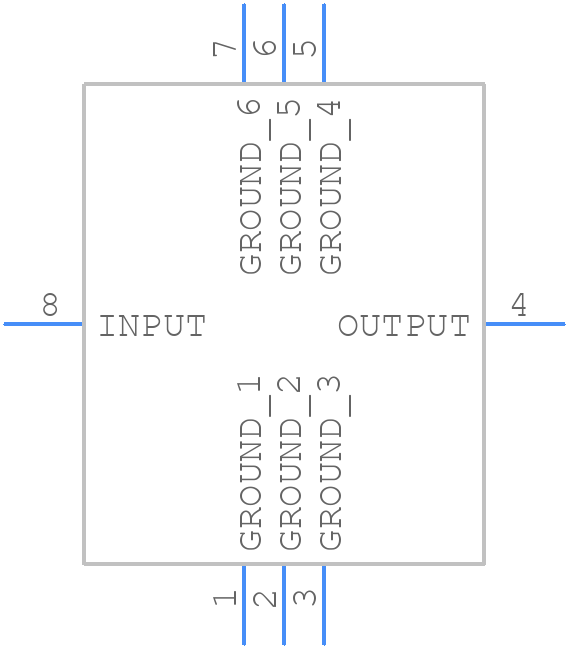

Use the download button to access the THP-700+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THP-7,
or try a keyword search, such as General Purpose Passive Filters
