SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.07 mm
Slew Rate-Nom:
6500 V/us
Supply Current-Max:
9 mA
Supply Voltage Limit-Max:
18.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
INDUSTRIAL
Terminal Finish:
NICKEL PALLADIUM GOLD SILVER
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
420000
Wideband:
YES
Width:
3 mm
THS3001HVIDGN Frequently Asked Questions (FAQs)
A good PCB layout for the THS3001HVIDGN involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
The gain resistor values for the THS3001HVIDGN depend on the desired gain and bandwidth of the amplifier. A good starting point is to use the recommended values in the datasheet, and then adjust them based on the specific requirements of your application. It's also important to consider the parasitic capacitance and inductance of the resistors when selecting their values.
The maximum power dissipation of the THS3001HVIDGN is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated based on the actual operating conditions.
To filter out noise and interference in your application, you can use a combination of passive and active filtering techniques. For example, you can use a low-pass filter at the input of the THS3001HVIDGN to remove high-frequency noise, and then use a shielding enclosure to reduce electromagnetic interference.
The recommended input impedance for the THS3001HVIDGN is 50 ohms, and the recommended output impedance is also 50 ohms. However, the actual impedance values may vary depending on the specific application and the desired signal integrity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS3001HVIDGN Overview

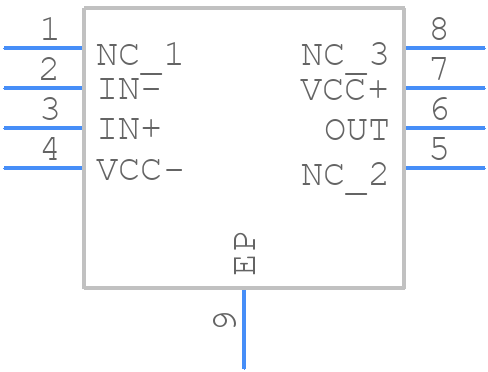

Use the download button to access the THS3001HVIDGN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS30,
or try a keyword search, such as Operational Amplifiers
