THS3091DDA - Texas Instruments

Description: Single- High-Voltage, Low Distortion, Current-Feedback Operational Amplifier

Download THS3091DDA Model

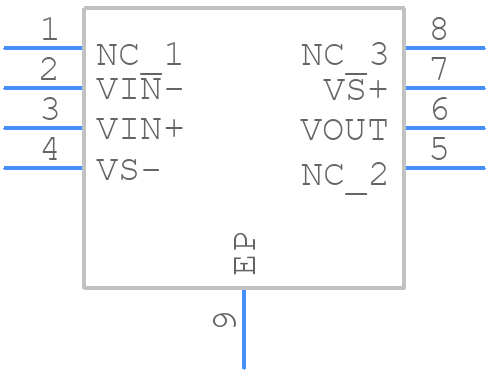

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
THS3091DDA - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DDA (R-PDSO-G8)+
click to zoom
3D Models
THS3091DDA - Texas Instruments  - 3D model - Small Outline Packages - DDA (R-PDSO-G8)+
click to zoom

THS3091DDA Details

  • Manufacturer Part Number:

    THS3091DDA

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Mexico, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    CURRENT-FEEDBACK

  • Average Bias Current-Max (IIB):

    20 µA

  • Bandwidth (3dB)-Nom:

    180 MHz

  • Bias Current-Max (IIB) @25C:

    15 µA

  • Common-mode Reject Ratio-Min:

    62 dB

  • Common-mode Reject Ratio-Nom:

    78 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    10 µA

  • Input Offset Voltage-Max:

    2000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -16.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.7 mm

  • Slew Rate-Nom:

    6000 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    11 mA

  • Supply Voltage Limit-Max:

    16.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Wideband:

    YES

  • Width:

    3.9 mm

THS3091DDA Frequently Asked Questions (FAQs)

  • A good PCB layout for the THS3091DDA involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The gain resistor values for the THS3091DDA depend on the desired gain and bandwidth of the amplifier. A good starting point is to use the gain resistor calculator provided by Texas Instruments or to consult the application notes. It's also important to consider the parasitic capacitance and inductance of the resistors when selecting the values.
  • The maximum power dissipation of the THS3091DDA is 2.5W. To ensure you don't exceed it, calculate the power dissipation using the formula Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current. Make sure to provide adequate heat sinking and thermal management to keep the junction temperature below 150°C.
  • To filter out high-frequency noise and EMI, use a combination of passive components such as ferrite beads, inductors, and capacitors. Additionally, consider using shielding and grounding techniques to minimize radiated emissions. It's also important to follow proper PCB layout and routing practices to minimize noise coupling.
  • The recommended input termination for the THS3091DDA is a 50Ω resistor in series with the input signal, and a 50Ω resistor to ground in parallel with the input signal. For the output, a 50Ω back-termination resistor is recommended to match the output impedance of the device.
