SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Slew Rate-Nom:
5700 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
21 mA
Supply Voltage Limit-Max:
16.5 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
145000
Wideband:
YES
Width:
4.4 mm
THS3096PWP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the THS3096PWP evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The selection of input and output termination resistors depends on the specific application and signal requirements. TI provides guidelines for selecting termination resistors in the THS3096PWP datasheet and application notes, including considerations for signal amplitude, frequency, and impedance matching.
The maximum power dissipation of the THS3096PWP is dependent on the operating conditions, including supply voltage, output current, and ambient temperature. To ensure the device doesn't overheat, TI recommends following the thermal design guidelines in the datasheet, including using a heat sink or thermal pad, and ensuring good airflow around the device.
TI recommends using a combination of passive and active filtering techniques to minimize noise and interference in the signal chain. This may include using RC filters, ferrite beads, and shielding to reduce electromagnetic interference (EMI), as well as using the THS3096PWP's built-in filtering capabilities, such as its common-mode rejection ratio (CMRR) and power supply rejection ratio (PSRR).
TI recommends following a specific power-up and power-down sequence to ensure the THS3096PWP operates correctly and to prevent damage to the device. This sequence typically involves powering up the device in a specific order, such as powering up the analog supply voltage before the digital supply voltage, and powering down the device in the reverse order.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS3096PWP Overview

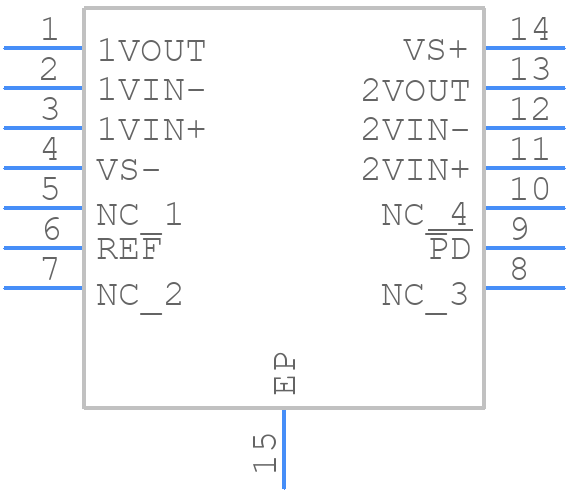

Use the download button to access the THS3096PWP schematic symbol, PCB footprint, and 3D model.
