A good PCB layout for the THS3121IDGN involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
The gain resistor values for the THS3121IDGN depend on the desired gain and bandwidth of the amplifier. A good starting point is to use the recommended values in the datasheet, and then adjust them based on the specific requirements of your application. You can also use the TI FilterPro software to help with the design.
The maximum power dissipation of the THS3121IDGN is 1.4W. To ensure you don't exceed it, calculate the power dissipation based on the output current and voltage, and make sure to provide adequate heat sinking and thermal management. You can use the thermal resistance values in the datasheet to estimate the junction temperature.
To filter out noise and interference, use a combination of passive and active filtering techniques. Use capacitors and resistors to filter out high-frequency noise, and consider adding a low-pass filter or a notch filter to remove specific frequency components. You can also use the THS3121IDGN's built-in filtering capabilities, such as the internal 100Ω resistor, to help reduce noise.
The recommended input impedance for the THS3121IDGN is 50Ω, and the recommended output impedance is 50Ω to 100Ω. However, the actual impedance values may vary depending on the specific application and the desired signal integrity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS3121IDGN Overview

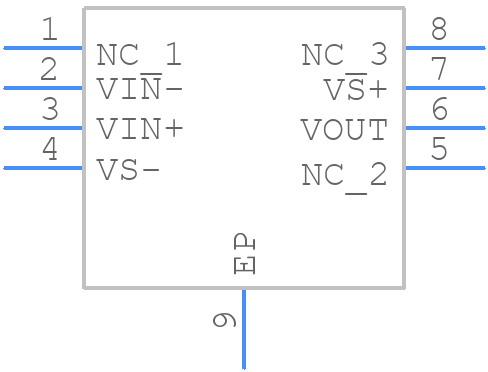

Use the download button to access the THS3121IDGN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS31,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
