SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Slew Rate-Nom:
1550 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
9 mA
Supply Voltage Limit-Max:
16.5 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
138000
Wideband:
YES
Width:
4.4 mm
THS3125CPWP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the THS3125CPWP evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The selection of input and output termination resistors depends on the specific application and signal requirements. TI provides guidelines for selecting termination resistors in the THS3125CPWP datasheet and application notes, including considerations for impedance matching, signal integrity, and power consumption.
The THS3125CPWP is specified to operate from -40°C to 125°C, but it's essential to consider the derating of the device's performance and reliability at extreme temperatures. Consult the datasheet and TI's application notes for more information on temperature-related considerations.
To ensure EMC and EMI compliance, follow proper PCB design and layout practices, use shielding and filtering techniques, and consider the device's radiation patterns and susceptibility to interference. TI provides guidelines and resources for EMC and EMI compliance in the THS3125CPWP datasheet and application notes.
Proper power supply decoupling and filtering are crucial for the THS3125CPWP's performance and reliability. TI recommends using a combination of ceramic and electrolytic capacitors, as well as ferrite beads or inductors, to filter out noise and ripple on the power supply lines. Consult the datasheet and application notes for more information on power supply decoupling and filtering techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS3125CPWP Overview

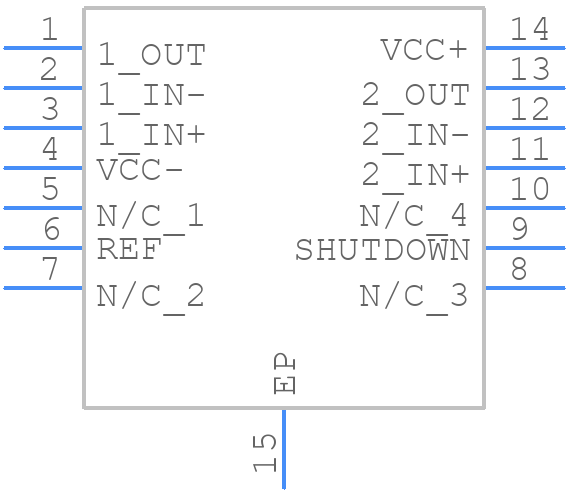

Use the download button to access the THS3125CPWP schematic symbol, PCB footprint, and 3D model.
