SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
RAIL
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Seated Height-Max:
1.1 mm
Slew Rate-Nom:
6700 V/us
Supply Current-Max:
21 mA
Supply Voltage Limit-Max:
8.25 V
Supply Voltage-Nom (Vsup):
7.5 V
Surface Mount:
YES
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
1800000
Wideband:
YES
Width:
3 mm
THS3201DGN Frequently Asked Questions (FAQs)
A good PCB layout for the THS3201DGN involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The gain resistor values for the THS3201DGN depend on the desired gain and bandwidth of the amplifier. A good starting point is to use the gain resistor calculator tool provided by Texas Instruments or to consult the application notes and design guides provided by TI.
The maximum power dissipation of the THS3201DGN is 1.4W. To ensure it doesn't overheat, make sure to provide adequate heat sinking, use a thermally conductive PCB material, and keep the device away from other heat sources. Additionally, ensure that the device is operated within the recommended operating conditions and that the power supply voltage is within the specified range.
Yes, the THS3201DGN can be used as a single-ended amplifier. To do so, connect the non-inverting input to the signal source, and tie the inverting input to ground through a resistor. The gain will be determined by the ratio of the feedback resistor to the gain resistor. Consult the datasheet and application notes for more information.
To filter out high-frequency noise and EMI, use a combination of passive components such as capacitors, inductors, and resistors to create a low-pass filter. Additionally, use shielding and grounding techniques to minimize electromagnetic radiation and susceptibility. Consult the datasheet and application notes for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS3201DGN Overview

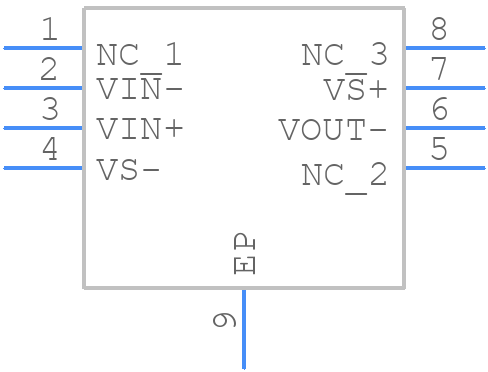

Use the download button to access the THS3201DGN schematic symbol, PCB footprint, and 3D model.
