THS4011CDGNR - Texas Instruments

Description: 290-MHz Low-Distortion Voltage-Feedback Amplifier

Download THS4011CDGNR Model

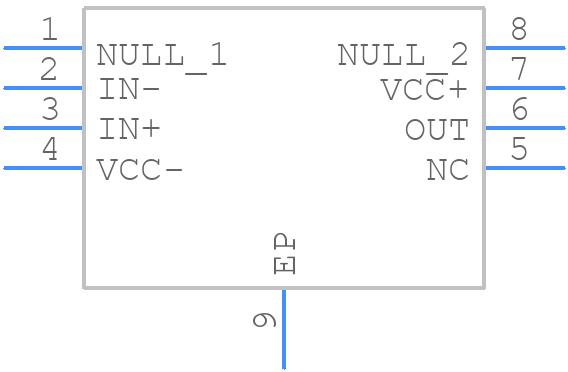

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
THS4011CDGNR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN0008D
click to zoom
3D Models
THS4011CDGNR - Texas Instruments  - 3D model - Small Outline Packages - DGN0008D
click to zoom

THS4011CDGNR Details

  • Manufacturer Part Number:

    THS4011CDGNR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    8 µA

  • Bias Current-Max (IIB) @25C:

    6 µA

  • Common-mode Reject Ratio-Min:

    82 dB

  • Common-mode Reject Ratio-Nom:

    110 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.25 µA

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -16.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.07 mm

  • Slew Rate-Min:

    300 V/us

  • Slew Rate-Nom:

    310 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    9.5 mA

  • Supply Voltage Limit-Max:

    16.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    290000

  • Voltage Gain-Min:

    5000

  • Wideband:

    YES

  • Width:

    3 mm

THS4011CDGNR Frequently Asked Questions (FAQs)

  • A good PCB layout for the THS4011CDGNR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 10nF to 100nF. The output capacitor should be a low-ESR ceramic or film capacitor with a value between 100nF to 1uF. The capacitor values and types may need to be adjusted based on the specific application and operating frequency.
  • The maximum power dissipation of the THS4011CDGNR is 1.4W. However, the actual power dissipation will depend on the operating conditions, such as the supply voltage, output current, and ambient temperature. It's essential to ensure that the device is properly heat-sinked and that the maximum junction temperature is not exceeded.
  • To ensure stability, it's essential to follow the recommended PCB layout and component selection guidelines. Additionally, the device should be operated within the recommended operating conditions, and the output should be properly terminated. The device's stability can be further improved by adding a small capacitor (e.g., 10pF to 100pF) between the output and the inverting input.
