Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for input and output signals.
The choice of input and output termination resistors depends on the specific application and the impedance of the signal source and load. A good starting point is to use the recommended values in the datasheet, but you may need to adjust them based on your specific requirements. You can also use simulation tools or consult with a TI application engineer for guidance.
The THS4012CDGN is rated for operation from -40°C to 125°C, but it's important to note that the device's performance may degrade at higher temperatures. Be sure to check the datasheet for specific temperature-related specifications and derating information.
Yes, the THS4012CDGN can be used in a non-inverting configuration, but it's not the recommended configuration. The device is optimized for inverting operation, and using it in a non-inverting configuration may result in reduced performance and stability issues.
The THS4012CDGN has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and avoid touching the device's pins or exposed internal components.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4012CDGN Overview

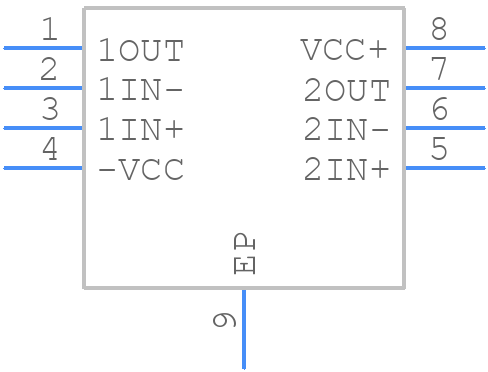

Use the download button to access the THS4012CDGN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS40,
or try a keyword search, such as Operational Amplifiers
