THS4012CDGNR - Texas Instruments

Description: 290-MHz Dual Low-Distortion Voltage-Feedback Amplifier, Dual

Download THS4012CDGNR Model

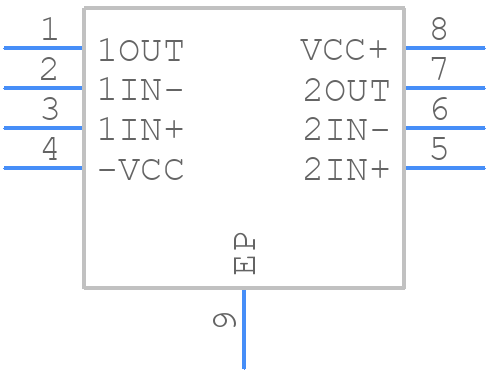

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
THS4012CDGNR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN0008D -2021
click to zoom
3D Models
THS4012CDGNR - Texas Instruments  - 3D model - Small Outline Packages - DGN0008D -2021
click to zoom

THS4012CDGNR Details

  • Manufacturer Part Number:

    THS4012CDGNR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    8 µA

  • Bias Current-Max (IIB) @25C:

    6 µA

  • Common-mode Reject Ratio-Min:

    82 dB

  • Common-mode Reject Ratio-Nom:

    110 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.25 µA

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -16.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.07 mm

  • Slew Rate-Min:

    300 V/us

  • Slew Rate-Nom:

    310 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    19 mA

  • Supply Voltage Limit-Max:

    16.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    290000

  • Voltage Gain-Min:

    5000

  • Wideband:

    YES

  • Width:

    3 mm

THS4012CDGNR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for input and output signals.
  • The THS4012CDGNR requires a dual supply voltage (VCC and VEE) and a bias voltage (VBIAS) to operate. Ensure that the bias voltage is set to the recommended value (typically 1.23V) and that the supply voltages are within the specified range (±5V to ±15V).
  • The THS4012CDGNR can handle input signal amplitudes up to 2Vpp (peak-to-peak) without distortion or clipping. However, it's recommended to limit the input signal amplitude to 1.5Vpp to ensure optimal performance and minimize distortion.
  • To minimize noise and interference, use proper shielding, grounding, and decoupling techniques. Use a low-noise power supply, and decouple the power supply lines with capacitors. Also, use a common-mode choke or a ferrite bead to filter out high-frequency noise on the input signals.
  • The typical settling time of the THS4012CDGNR is around 10ns to 20ns, depending on the input signal frequency and amplitude. However, this can vary depending on the specific application and PCB layout.
