Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for input and output signals.
The input termination depends on the source impedance and the desired signal integrity. For example, if the source impedance is 50 ohms, a 50-ohm termination resistor may be used. However, if the source impedance is unknown or variable, a resistive divider or an active termination circuit may be required.
The THS4012CDR is specified to operate from -40°C to 85°C, but it's essential to consider the thermal design and heat dissipation of the system to ensure reliable operation within this range.
Yes, the THS4012CDR can be used in a non-inverting configuration by swapping the input pins and adjusting the feedback network accordingly. However, this may affect the amplifier's stability and bandwidth, so careful analysis and simulation are recommended.
To minimize EMI and EMC issues, use proper shielding, grounding, and decoupling techniques. Ensure that the PCB layout is designed to minimize radiation and susceptibility to external interference. Additionally, consider using EMI filters or shielding components in the system design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4012CDR Overview

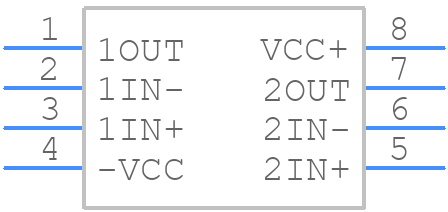

Use the download button to access the THS4012CDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS40,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
