Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for input and output signals.
The THS4012IDGNR requires a dual supply voltage (VCC and VEE) and a bias voltage (VBIAS) to operate. Ensure that the bias voltage is set to the recommended value (typically 1.23V) and that the supply voltages are within the specified range (±15V). Additionally, decouple the power supplies with capacitors to reduce noise and ensure stable operation.
The THS4012IDGNR can handle input signal amplitudes up to 2Vpp (peak-to-peak) without distortion or clipping. However, it's recommended to limit the input signal amplitude to 1.5Vpp or less to ensure optimal performance and minimize distortion.
To reduce noise and EMI, use shielding, grounding, and decoupling techniques. Place the THS4012IDGNR in a shielded enclosure, use a solid ground plane, and decouple the power supplies and input/output signals with capacitors. Additionally, use EMI filters or common-mode chokes to reduce radiated emissions.
The settling time of the THS4012IDGNR depends on the input signal frequency and amplitude. Typically, the settling time is around 10-20 ns for a 1Vpp input signal at 100 MHz. However, this can vary depending on the specific application and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4012IDGNR Overview

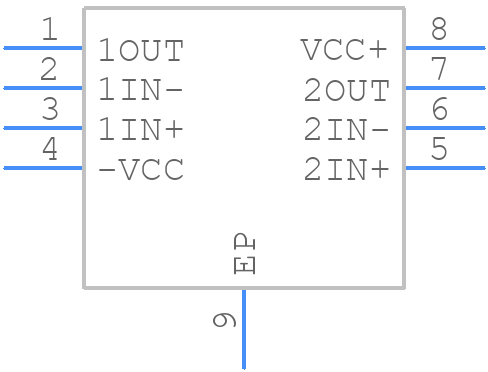

Use the download button to access the THS4012IDGNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS40,
or try a keyword search, such as Operational Amplifiers
