SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.07 mm
Slew Rate-Nom:
470 V/us
Supply Current-Max:
10 mA
Supply Voltage Limit-Max:
16.5 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
350000
Voltage Gain-Min:
20000
Wideband:
YES
Width:
3 mm
THS4021IDGN Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the THS4021IDGN evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The choice of input and output capacitors depends on the specific application requirements, such as frequency response, noise tolerance, and power supply rejection. TI recommends using low-ESR capacitors with a value of 10uF to 22uF for input and output capacitors, and provides guidance on capacitor selection in the datasheet and application notes.
The THS4021IDGN is specified to operate from -40°C to 125°C, but it's recommended to derate the device's performance at extreme temperatures. Consult the datasheet and reliability reports for more information on temperature-related performance and reliability.
To ensure EMC, follow proper PCB layout and design guidelines, use shielding and filtering components as needed, and consider using a metal shield or enclosure for the device. TI provides EMC-related guidance in the datasheet and application notes.
The recommended power-up sequence is to apply the power supply voltage (VCC) before applying the input signal, and to remove the input signal before removing the power supply voltage. This helps prevent damage to the device and ensures proper operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4021IDGN Overview

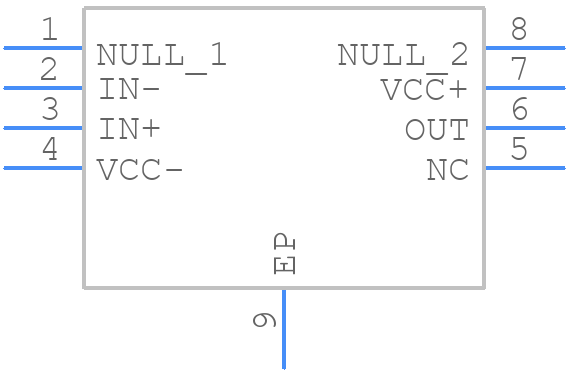

Use the download button to access the THS4021IDGN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS40,
or try a keyword search, such as Operational Amplifiers
