THS4031IDGN - Texas Instruments

Description: THS4031IDGN Texas Instruments, Op Amp, 120MHz, 10 → 28 V, 8-Pin MSOP

Download THS4031IDGN Model

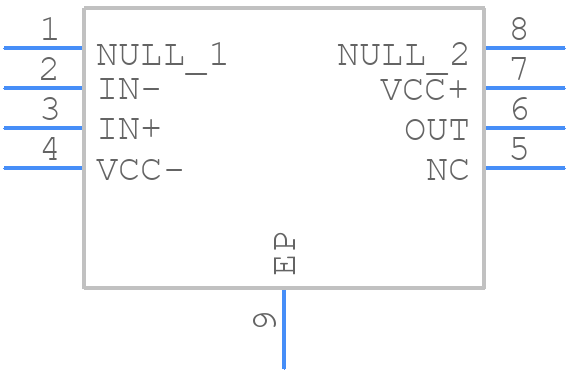

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
THS4031IDGN - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN0008D
click to zoom
3D Models
THS4031IDGN - Texas Instruments  - 3D model - Small Outline Packages - DGN0008D
click to zoom

THS4031IDGN Details

  • Manufacturer Part Number:

    THS4031IDGN

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    8 µA

  • Bandwidth (3dB)-Nom:

    90 MHz

  • Bias Current-Max (IIB) @25C:

    20 µA

  • Common-mode Reject Ratio-Min:

    85 dB

  • Common-mode Reject Ratio-Nom:

    95 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.25 µA

  • Input Offset Voltage-Max:

    2000 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -16.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.07 mm

  • Slew Rate-Min:

    80 V/us

  • Slew Rate-Nom:

    100 V/us

  • Supply Current-Max:

    10 mA

  • Supply Voltage Limit-Max:

    16.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1200000

  • Voltage Gain-Min:

    28000

  • Wideband:

    YES

  • Width:

    3 mm

THS4031IDGN Frequently Asked Questions (FAQs)

  • A good PCB layout for the THS4031IDGN involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 10nF to 100nF. The output capacitor should be a low-ESR ceramic capacitor with a value between 100nF to 1uF. The capacitor values and types may need to be adjusted based on the specific application and operating frequency.
  • The maximum power dissipation of the THS4031IDGN is dependent on the ambient temperature and the thermal resistance of the package. The maximum power dissipation is typically around 1.4W at 25°C ambient temperature. However, this value can be derated based on the operating temperature and the thermal resistance of the package.
  • To ensure stability, the THS4031IDGN requires a minimum gain of 10dB, a minimum output impedance of 50 ohms, and a maximum capacitive load of 100pF. Additionally, the device should be operated within its recommended operating conditions, and the input and output traces should be kept short and away from each other.
  • The recommended operating voltage range for the THS4031IDGN is 2.7V to 5.5V. Operating the device outside of this range may affect its performance and reliability.
