SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Slew Rate-Nom:
100 V/us
Supply Current-Max:
20 mA
Supply Voltage Limit-Max:
16.5 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
100000
Voltage Gain-Min:
35000
Wideband:
YES
Width:
3 mm
THS4032IDGNR Frequently Asked Questions (FAQs)
A good PCB layout for the THS4032IDGNR involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the signal source. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling.
To ensure stability, it's essential to follow the recommended compensation network and component values, as well as to maintain a stable power supply voltage. Additionally, the device's output should be properly terminated, and the input signal should be within the recommended common-mode voltage range.
The THS4032IDGNR is specified to operate from -40°C to 125°C. However, it's essential to consider the device's thermal characteristics and ensure proper heat sinking to maintain reliable operation within the specified temperature range.
Yes, the THS4032IDGNR is suitable for high-frequency applications up to 400 MHz. However, it's crucial to consider the device's bandwidth, slew rate, and settling time to ensure that it meets the requirements of your specific application.
The THS4032IDGNR has built-in ESD protection, but it's still essential to follow proper handling and storage procedures to prevent damage. Additionally, consider using external ESD protection devices, such as TVS diodes, to further protect the device from electrostatic discharge.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4032IDGNR Overview

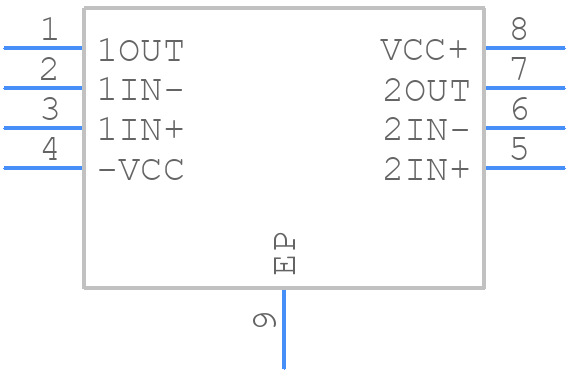

Use the download button to access the THS4032IDGNR schematic symbol, PCB footprint, and 3D model.
